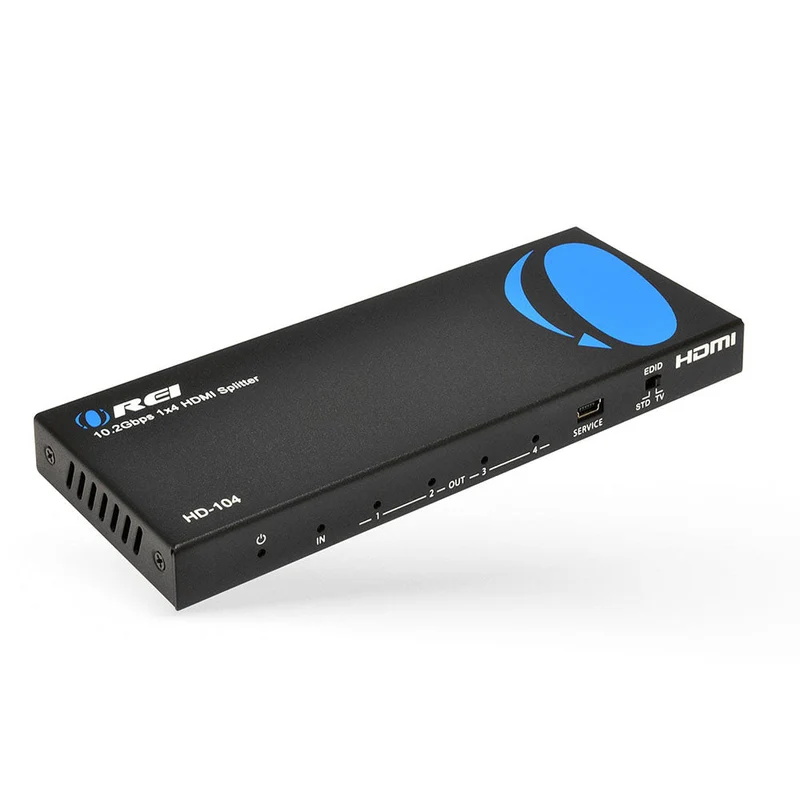

1 Input 4 Output HDMI Splitter with EDID management (HD-104)

OREI HD -104: 1 Input 4 Output HDMI Splitter with EDID management

Key Features:

• HDMI 1.4 and HDCP 1.4 compliant
• Video resolution up to 4K@30Hz
• 2.97Gbps video bandwidth
• Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD, and DSD
• 3D video support at 1080p@60Hz
• EDID management

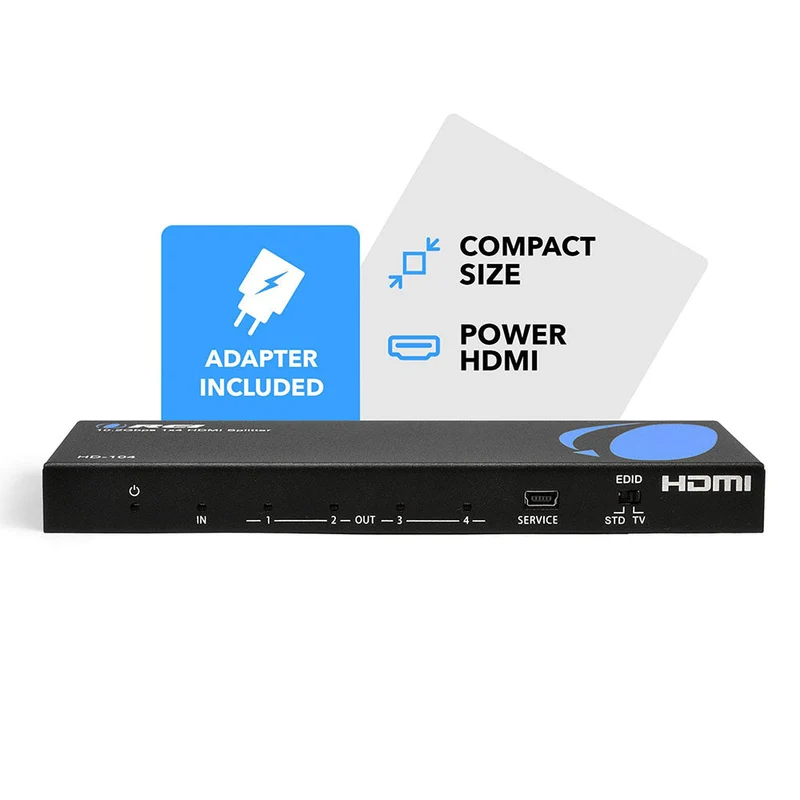

• Small size and plug-and-play setup

The OREI HDS-104 HDMI splitter is a reliable device for splitting an audio/video signal to 4 outputs. It supports video resolutions up to 4K@30Hz while being HDMI 1.4 and HDCP 1.4 compliant. It also supports 2.97Gbps video bandwidth while also supporting audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. It features dip switches for EDID management. The device is perfect for a commercial or residential setup requiring the duplication of content onto 4 screens.

[shortdes]

• Mirror content to 4 displays
• Resolutions up to 4K@30Hz
• EDID management

[/shortdes]

[tab]

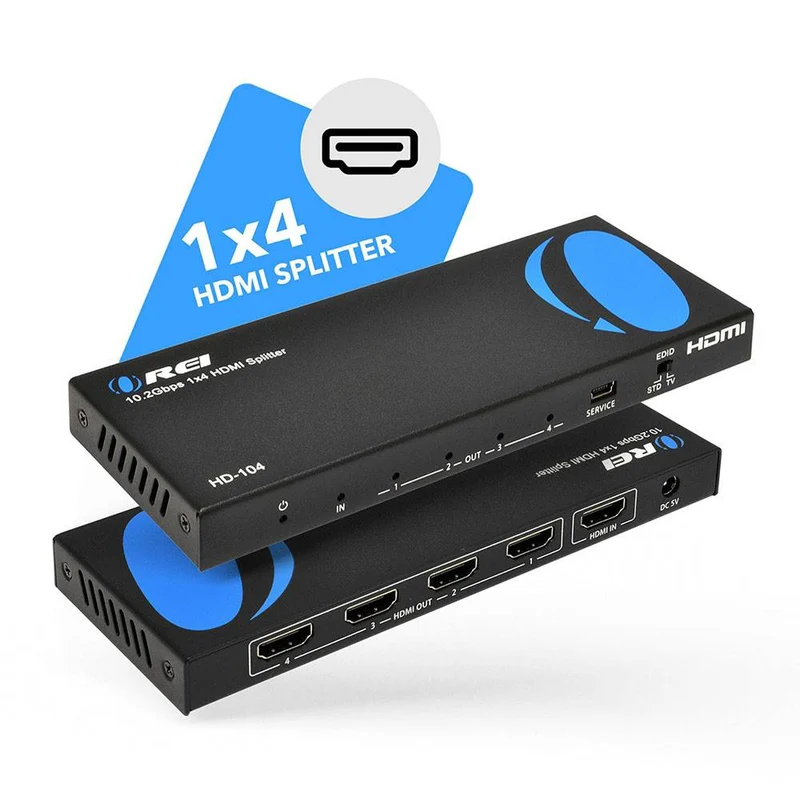

CONNECTIVITY

INPUT:	1 × HDMI [Type A, 19-pin female]
OUTPUT:	4 × HDMI [Type A, 19-pin female]
CONTROL:	1 × SERVICE port [5-pin, Mini USB-B]

PACKAGE CONTENTS

1x HD-104 HDMI Splitter

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.0/2.1

We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

4K@30Hz:

30 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 4K@30Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	No
Number of Loop out ports:	0

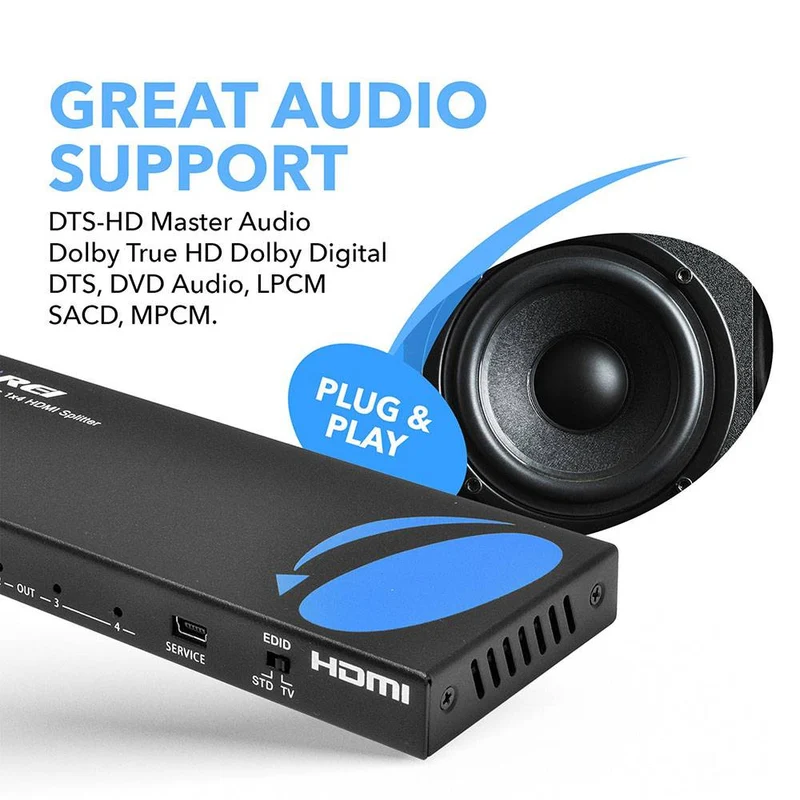

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 7.1, Dolby-true-HD, DTS-HD, DTS, Dolby-AC3, DSD

COMPLIANCES

HDMI Compliance	HDMI 1.4a
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	5W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/1A

DIMENSIONS & WEIGHT

	Length:	145mm / 5.71in
	Width:	70mm / 2.76in
	Height:	25mm / 0.98in
	Weight:	300g / 10.58oz

PROPERTIES

Color:	Black

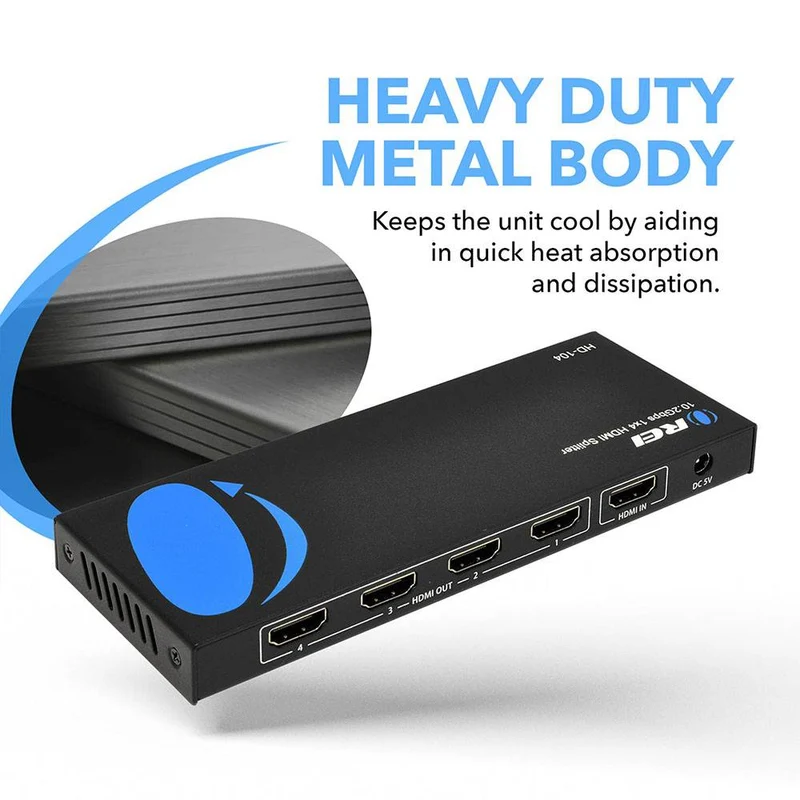

Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab] [tab1]

FAQs

Can we use this splitter with Elgato capture card?

Our splitters will not work with capture cards due to the HDCP encryption on the output

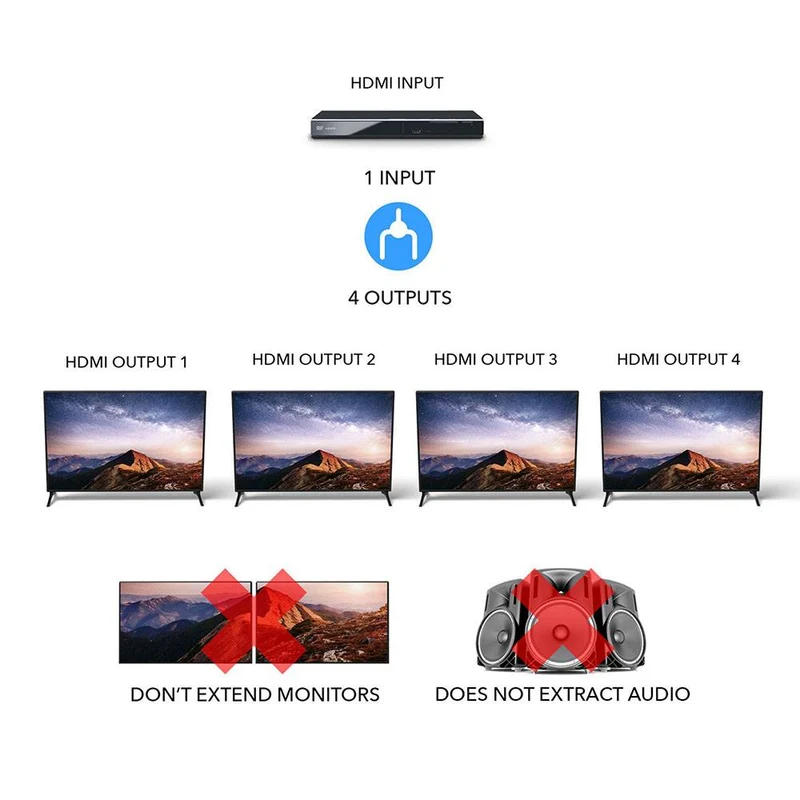

Can the splitter show two different images on the different screens?

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Does this HDMI splitter support extend mode?

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Does the power adapter support 220V input?

Yes, the power adapter does support 220V

What is the maximum length of HDMI outputs?

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.

Does this support HDMI-CEC function?

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
