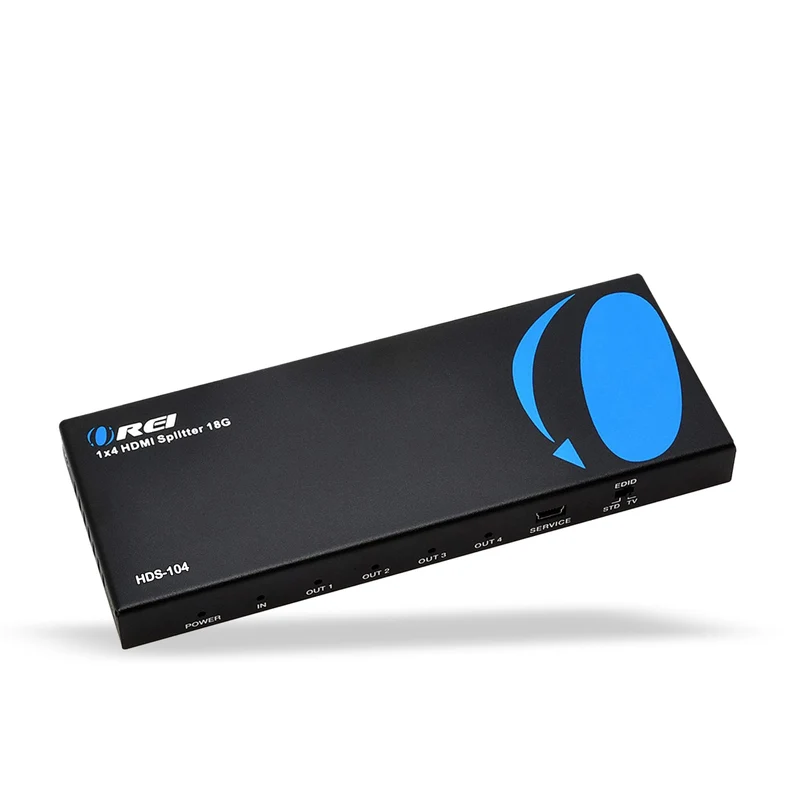

1x4 HDMI Splitter with Power Adapter : 1-in 4-out, EDID (HDS-104)

OREI HDS -104: 1 Input 4 Output HDMI Splitter

Key Features:

• HDMI 2.0b and HDCP 2.2 compliant

• Video resolution up to 4K@30Hz
• 18Gbps video bandwidth
• Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD and DSD
• 3D video support at 1080p@60Hz
• EDID management

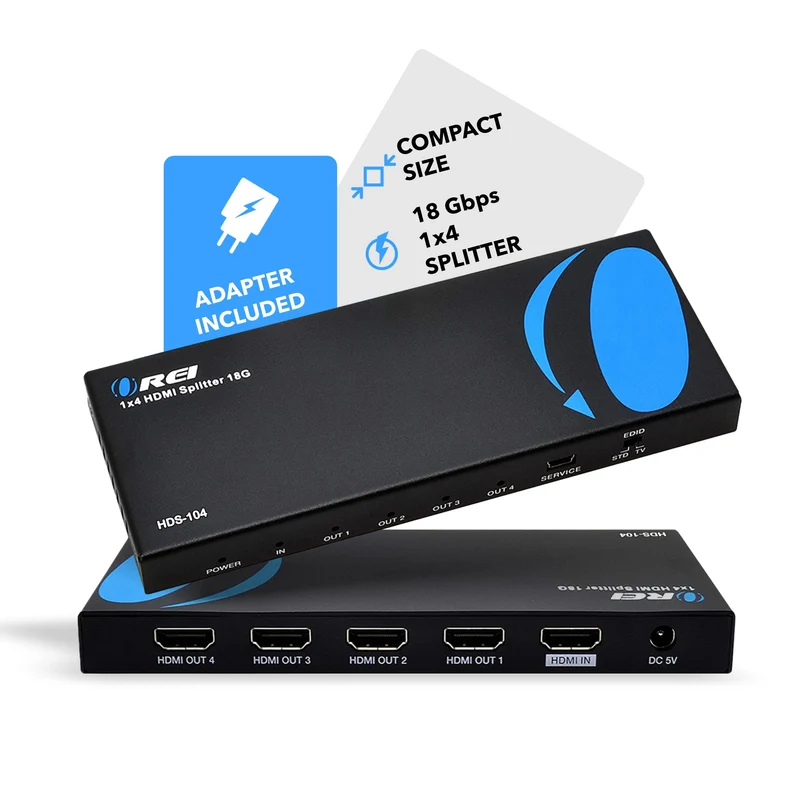

• Small size and plug-and-play setup

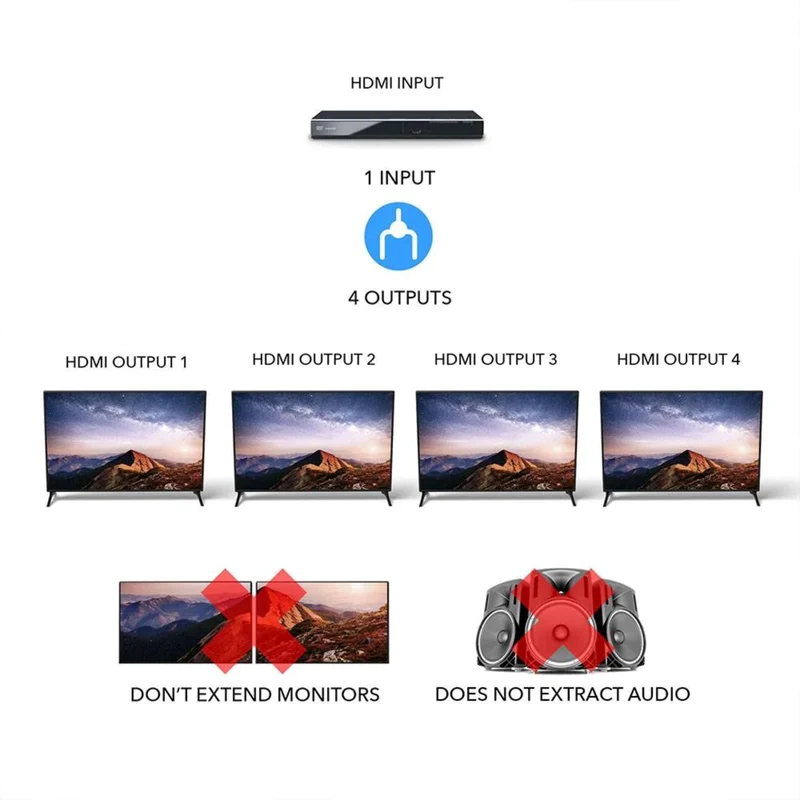

The OREI HDS-104 is designed to duplicate one HDMI input signal to four identical HDMI outputs, ideal for displaying the same content on multiple screens. This splitter does not extend monitors; it only mirrors the input signal. It supports HDMI cables up to 30 feet for optimal performance. This 4K 18 Gbps powered HDMI splitter is compatible with HDMI 2.0 and HDCP 2.2. It delivers resolutions up to 4K@60Hz, as well as 1080p, 720p, VGA, and WUXGA. It also supports advanced audio formats, including LPCM, Dolby-AC3, DTS7.1, DSD, Dolby TrueHD, and DTS-HD Master Audio, ensuring excellent sound quality.

 Its compact size and plug-and-play installation make it easy to set up, while its EDID management ensures compatibility with various displays. Perfect for commercial or home use requiring multiple displays.

[tab]

AUDIO AND VIDEO

Input:	1 × HDMI Type A (19-pin female)
Output:	4 × HDMI Type A (19-pin female)
Video Bandwidth:	18 Gbps
Video Resolution:	Up to 4K@60Hz and 2k@60Hz
Color Space:	YUV 4:2:2, YUV 4:4:4, YUV 4:2:0, RGB
HDMI Audio Formats:	LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Supply:	Input: AC 100-240V 50/60Hz Output: DC 5V/1A
Power Consumption:	2W (Max)

ENVIRONMENTAL

Operating Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20 ~ 90% RH (Non-condensing)

DIMENSIONS & WEIGHT

Height:	25 mm / 0.98in
Width:	70 mm / 2.75in
Depth:	145 mm / 5.70in
Weight:	300 g / 10.58oz

REGULATORY

REGULATORY:

CE | FCC | RoHS

PACKAGE CONTENTS

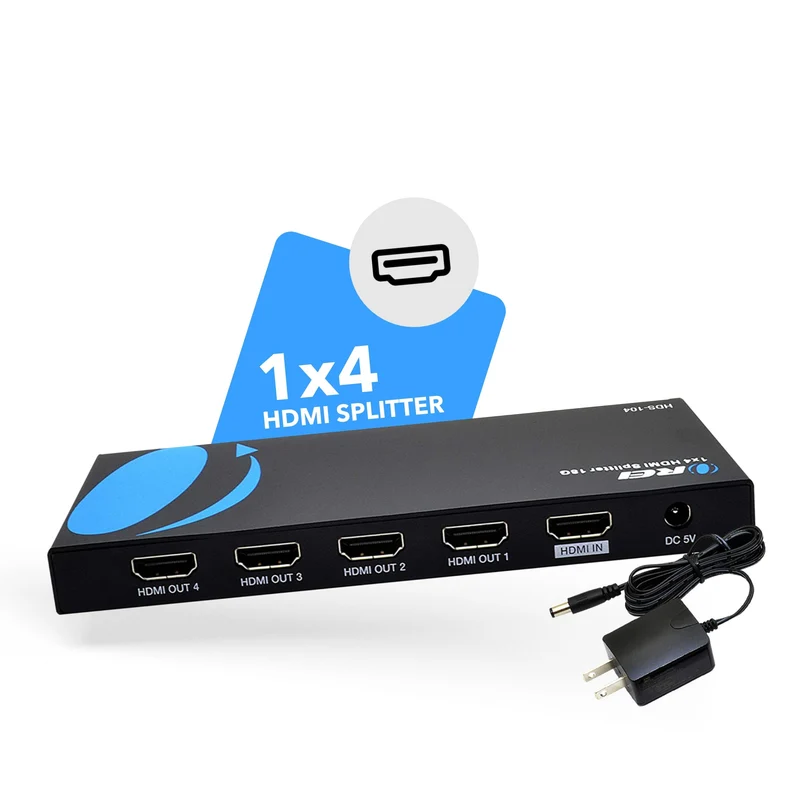

1 × HDS-104 1×4 HDMI Splitter

1 × Power Adapter

1 × User Manual

Warranty

1 - Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Can we use this splitter with Elgato capture card?

Our splitters will not work with capture cards due to the HDCP encryption on the output

Can the splitter show two different images on the different screens?

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Does this HDMI splitter support extend mode?

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Does the power adapter support 220V input?

Yes, the power adapter does support 220V

What is the maximum length of HDMI outputs?

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

Does this support HDMI-CEC function?

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.

What are the supported display resolution of HDS-104?

The output resolution support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.

What are the supported audio formats of HDS-104?

DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD

Which HDMI version does HDS-104 supports?

It supports HDMI 1.4A

[/tab1]

[shortdes]

• Split 1 HDMI Source to 4 identical displays - 3D Support
• Video resolutions up to 4K@60Hz and 2k@60Hz
• Compliance: HDMI 2.0b - HDCP 2.2

[/shortdes]
