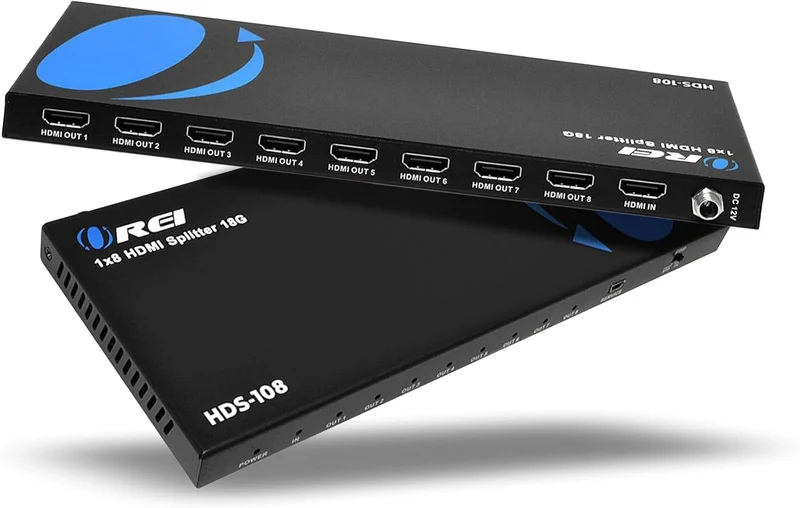

1x8 HDMI Splitter 4K@30Hz Powered - Supports 3D Full HD 1080P (HDS-108)

OREI HDS -108: 1x8 HDMI Splitter

Key Features:

• HDMI 2.0 and HDCP 2.2 compliant
• Video resolutions up to 4K@30Hz YCbCr 4:4:4
• 18Gbps video bandwidth
• LPCM 7.1, Dolby True HD, and DTS-HD Master Audio support
• Advanced EDID management with dip switch to toggle between 2 presets: STD: Set the output to 1080p@60Hz TV: Copy the EDID of the display connected to OUT1
• Robust build with an easy plug and play installation
• Perfect for commercial and personal setups

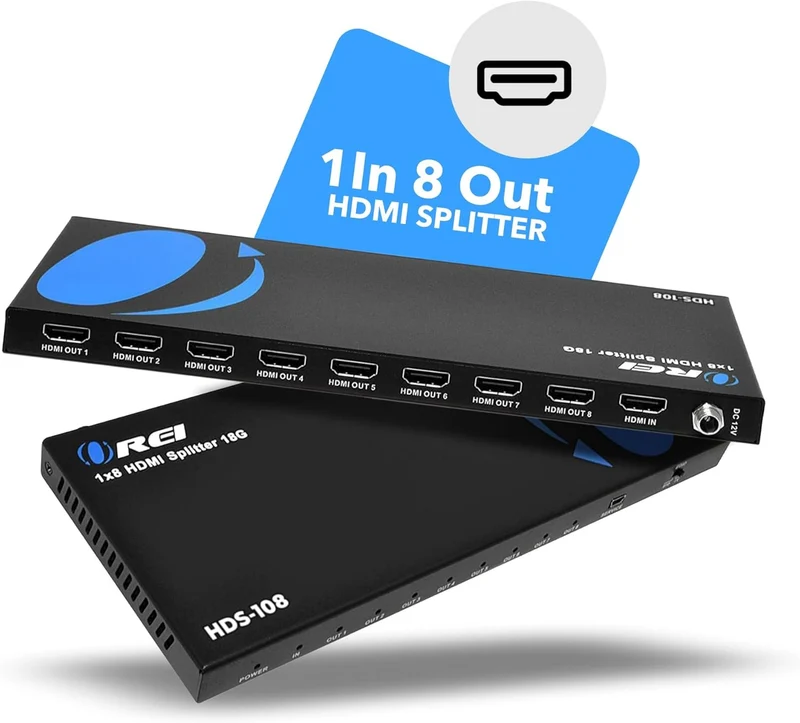

The OREI HDS-108 is a 1 in 8 HDMI splitter that can take any HDMI input and display it across 8 displays (mirrored). It is HDMI 2.0 and HDCP 2.2 compliant with a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@30Hz with 3D support for up to 1080p@60Hz. Advanced EDID management with DIP switch. It supports audio pass-through for the following audio formats LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, and others. Robust build with an easy plug and play installation. Perfect for commercial and personal setups requiring 1 HDMI source displayed across up to 8 displays.

[tab]

CONNECTIVITY

INPUT:	1 × HDMI [Type A, 19-pin female]
OUTPUT:	8 × HDMI [Type A, 19-pin female]
CONTROL:	1× SERVICE [Mini-USB B, Update port]

PACKAGE CONTENTS

1x UHDS-104 HDMI Splitter

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.0/2.1

We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

4K@30Hz:

30 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

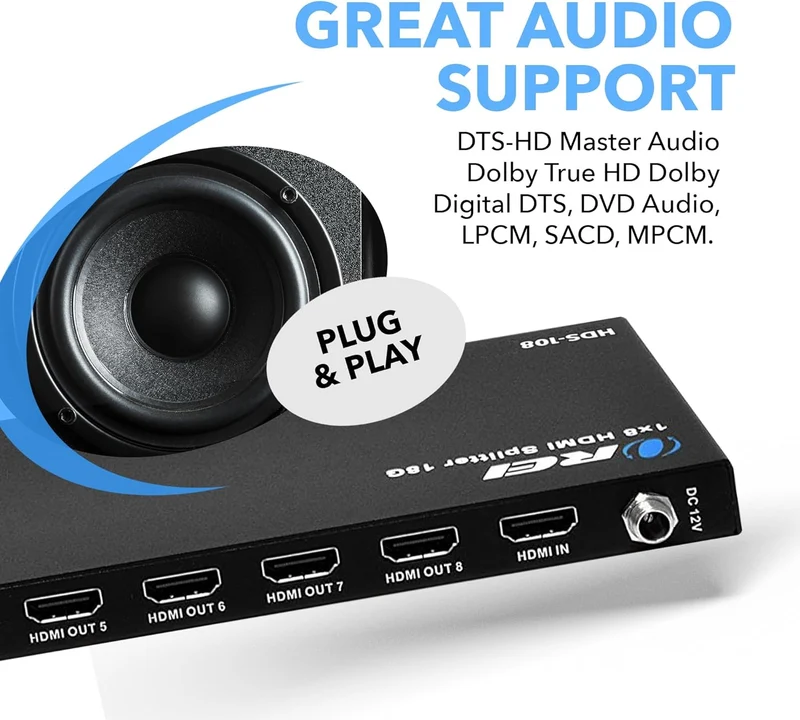

AUDIO SUPPORT

HDMI Audio Formats:

LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	6.15W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 12V/1A

DIMENSIONS & WEIGHT

Length:	243mm / 9.57in
Width:	102mm / 4.01in
Height:	16mm / 0.63in
Weight:	572g / 1.26lbs

PROPERTIES

Color:	Black

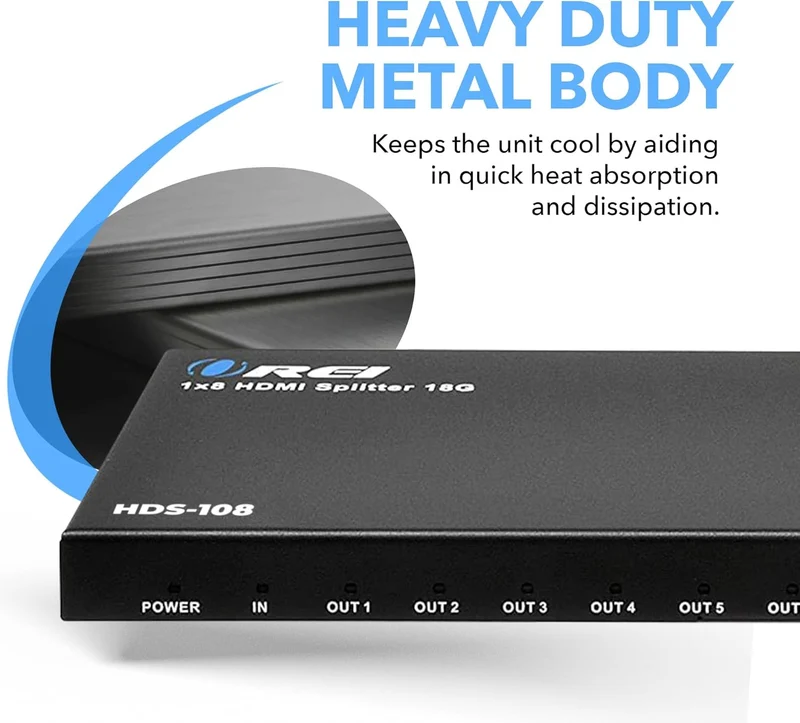

Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[shortdes]

• 1 in 8 out HDMI splitter

• Resolutions up to 4K@30Hz

• Advanced EDID management

[/shortdes]

[tab1]

FAQs

Can we use this splitter with Elgato capture card?

Our splitters will not work with capture cards due to the HDCP encryption on the output

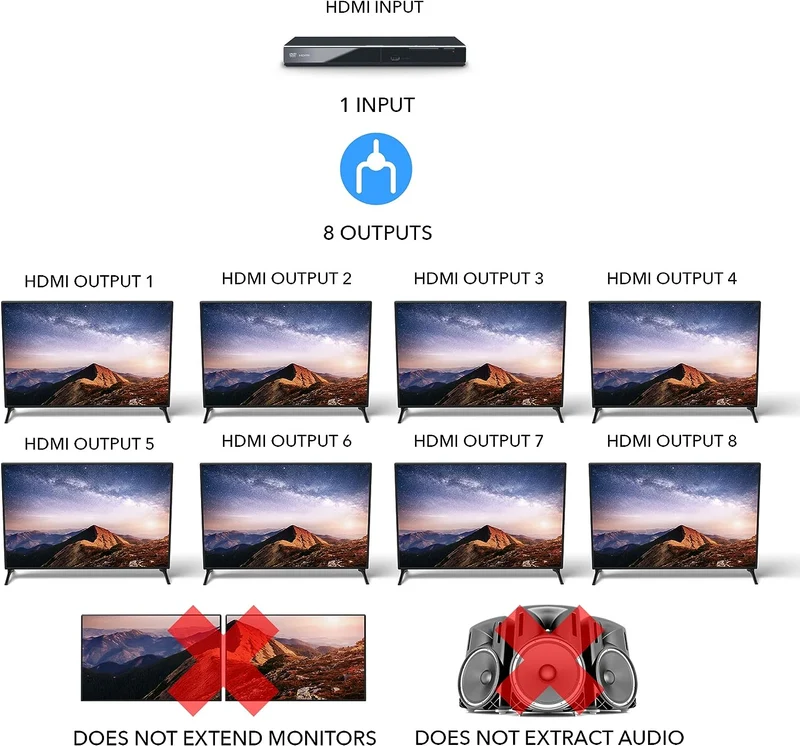

Can the splitter show two different images on the different screens?

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Does this HDMI splitter support extend mode?

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Does the power adapter support 220V input?

Yes, the power adapter does support 220V

What is the maximum length of HDMI outputs?

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

Does this support HDMI-CEC function?

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.

What are the supported display resolution of HDS-104?

The output resolution support up to 4K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.

What are the supported audio formats of HDS-104?

DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD

Which HDMI version does HDS-104 supports?

It supports HDMI 2.0
