4K 1x2 HDMI Splitter: 1-in 2-out, EDID (HDS-102)

OREI HDS-102: 4K 1x2 HDMI Splitter with EDID

Key Features:

• HDMI 1.4a & HDCP 1.4 compliant.
• Video resolutions up to 4K@30Hz, including 1080P@120Hz, and 1080P 3D@60Hz
• 2.97Gbps video bandwidth
• Digital audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD are supported.
• EDID Mode:
  Copy Mode: Copy output 1 EDID to input port.
  Auto Mode: Compare output ports 1 and 2 EDID and output the lowest between the 2
• Does NOT extend laptop or PC display to have different programs on both screens
• Compact design and plug-and-play setup

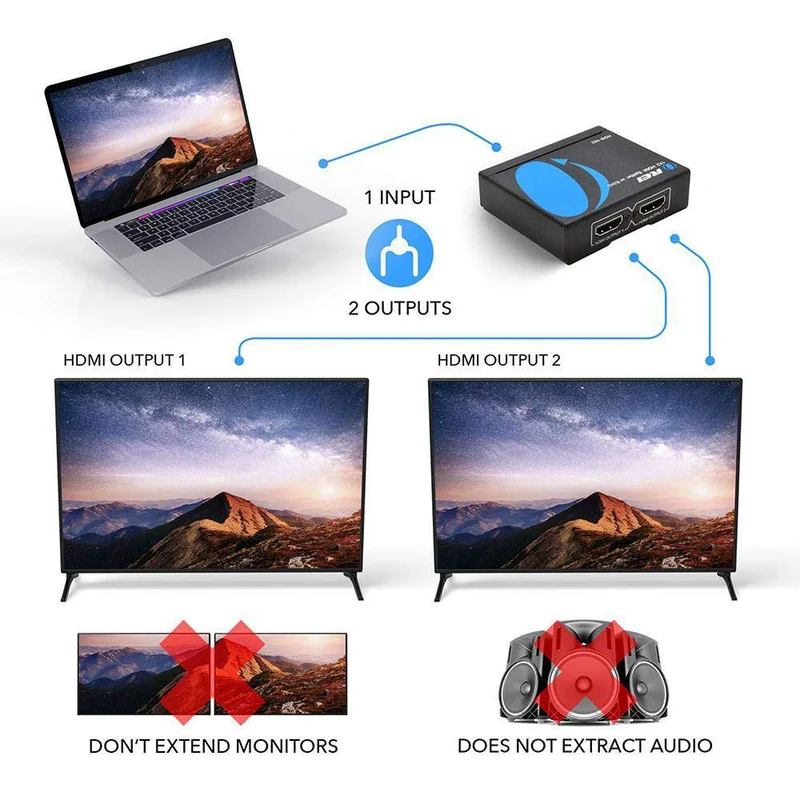

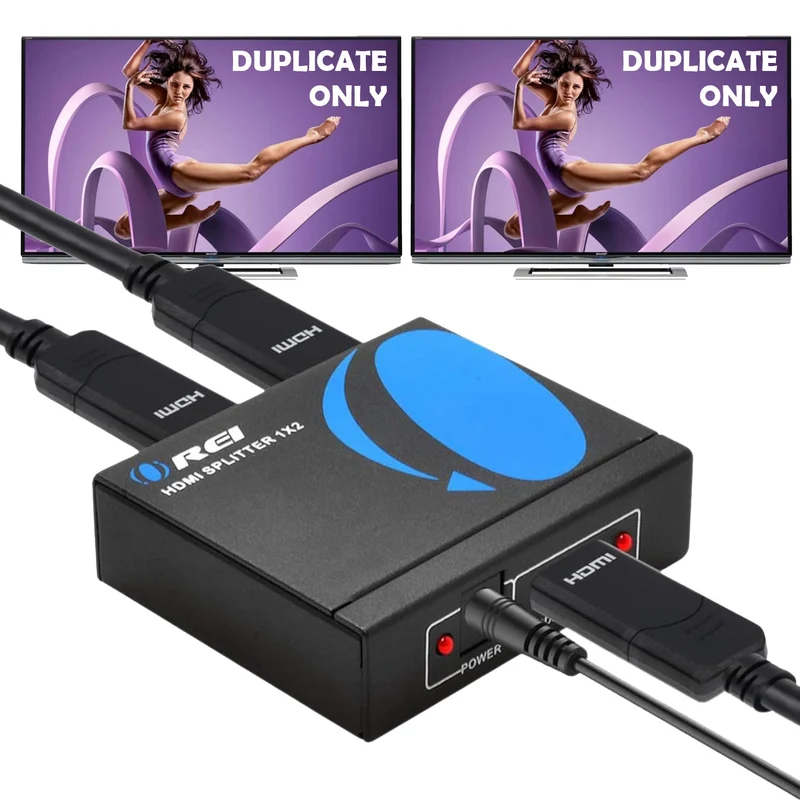

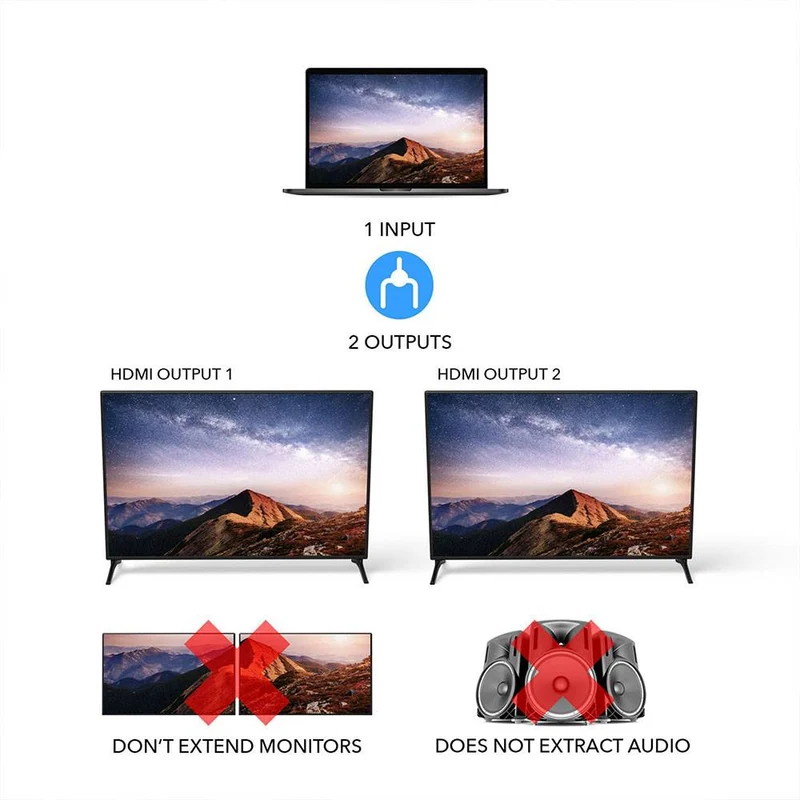

The OREI HDS-102 HDMI Splitter can take 1 HDMI input and duplicate the output to 2 displays simultaneously. The device supports video resolutions up to 4K@30Hz. It is HDMI 1.4a and HDCP 1.4 compliant. You can connect any media device such as a cable box, laptop, FireTv stick, Apple TV, etc. and duplicate its contents to 2 different displays at the same time. The device features a switch to select between 2 EDID settings; COPY and AUTO. It is perfect for any commercial or personal home theatre setups.

Does NOT EXTEND Laptop or PC display to have different program on both screens. Use the OREI SplitXtend dual display adapter for extended displays.

[shortdes]

• Split audio/video signals to 2 displays
• HDMI 1.4a & HDCP 1.4 compliant
• EDID management

[/shortdes]

[tab]

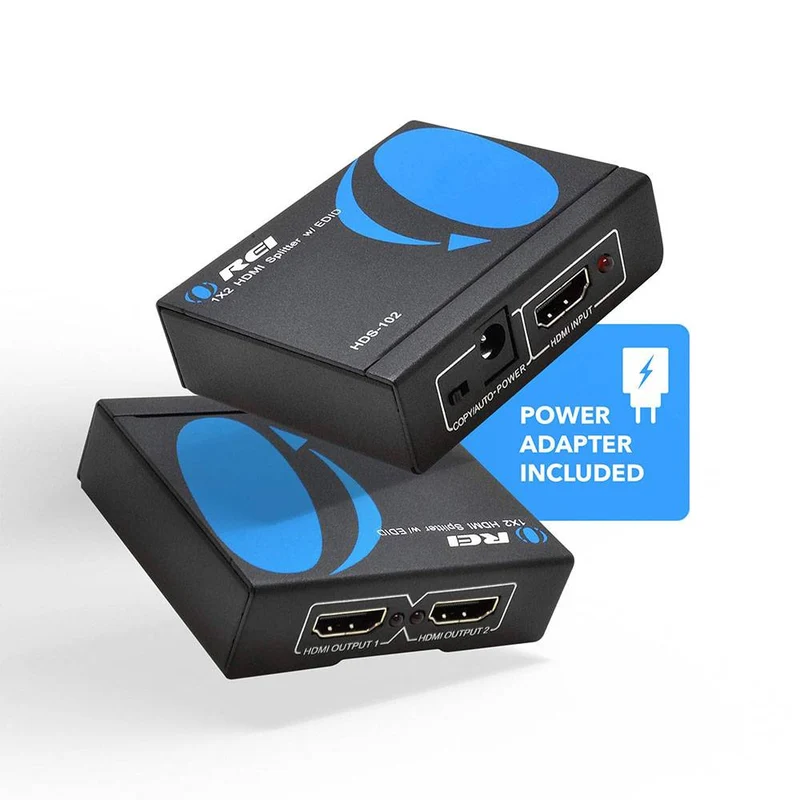

CONNECTIVITY

INPUT:	1 × HDMI [Type A, 19-pin female]
OUTPUT:	2 × HDMI [Type A, 19-pin female]

PACKAGE CONTENTS

1x HDS-102

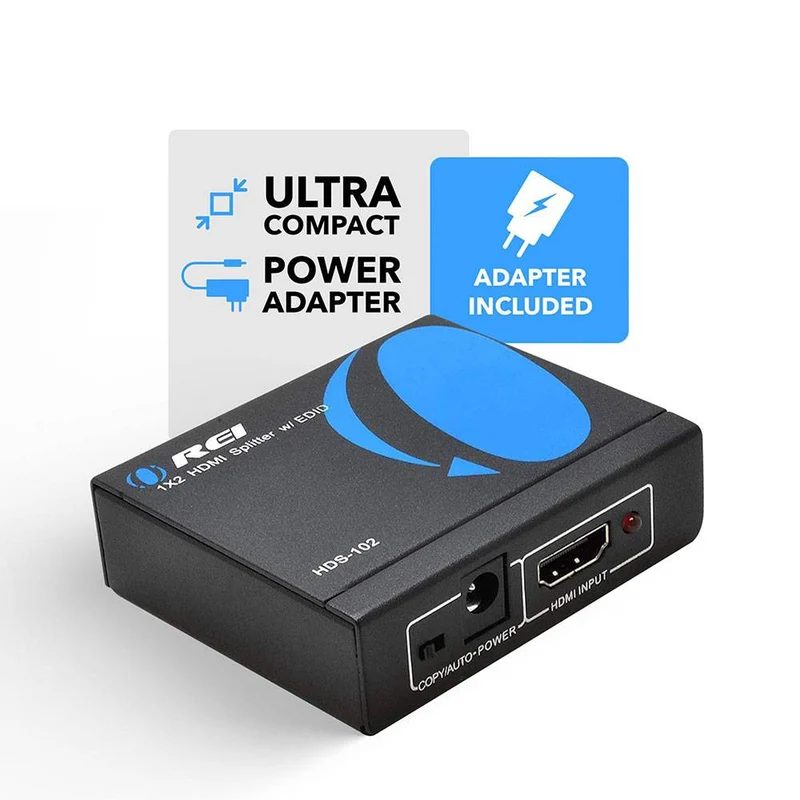

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.0/2.1

We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

4K@30Hz:

30 Feet

VIDEO OUTPUT

Video Bandwidth:	2.97Gbps
Video Resolutions:	Up to 4K@30Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

AUDIO SUPPORT

HDMI Audio Formats:

DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD

COMPLIANCES

HDMI Compliance	HDMI 1.4a
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	5W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/1A

DIMENSIONS & WEIGHT

Length:	70mm / 2.76in
Width:	60mm / 2.36in
Height:	20mm / 0.79in
Weight:	125g / 4.4oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Can we use this splitter with Elgato capture card?

Our splitters will not work with capture cards due to the HDCP encryption on the output

Can the splitter show two different images on the different screens?

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Does this HDMI splitter support extend mode?

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Does the power adapter support 220V input?

Yes, the power adapter does support 220V

What is the maximum length of HDMI outputs?

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.

Does this support HDMI-CEC function?

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
