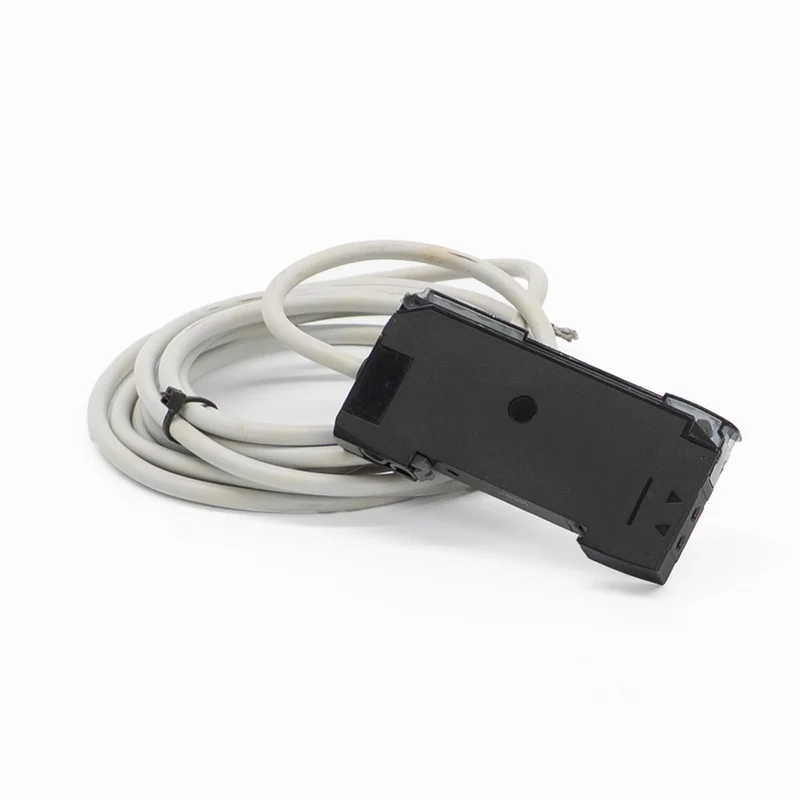

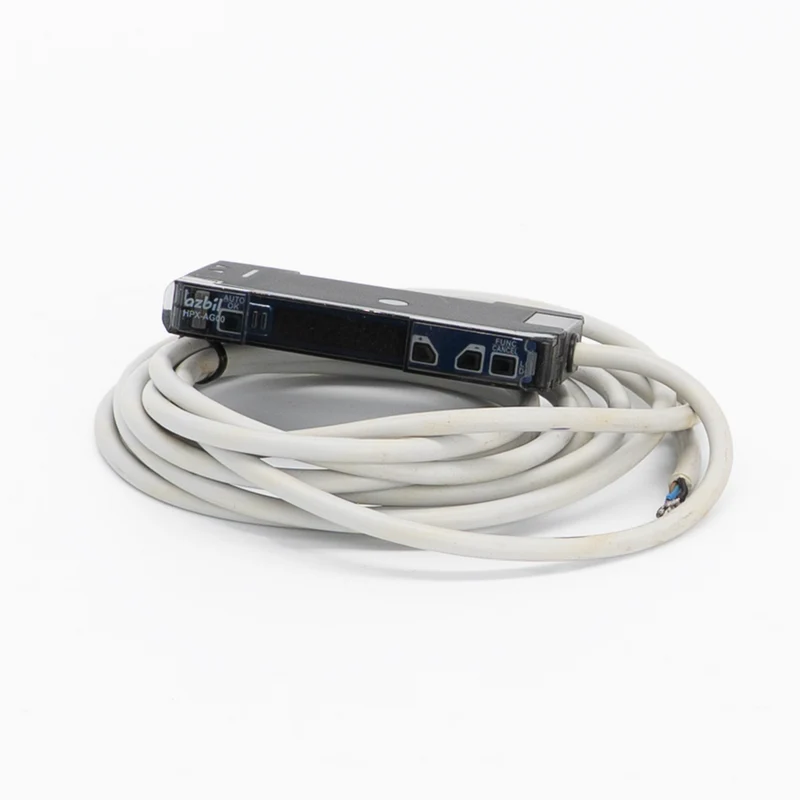

Azbil HPX-AG00-1S Proximity Sensor

The Azbil HPX-AG00-1S is a high-performance fiber optic proximity sensor amplifier, engineered for precise object detection in compact automation systems. Designed by Azbil Corporation, this model features advanced sensing technology, easy-to-use controls, and a slim-profile body ideal for mounting in space-constrained locations.

Key Features

• Slim Fiber Amplifier Body
  Compact housing with integrated fiber optic cable support allows for installation in tight spaces without compromising detection reliability.

• NPN Open-Collector Output
  The HPX-AG00-1S comes with an NPN output configuration, making it compatible with a wide range of control and PLC systems.

• Wiring Configuration

  • Brown Wire: +12–24 VDC (power supply)

  • Blue Wire: 0 V (ground)

  • Black Wire: NPN Output (signal line)

• Digital Display & Function Keys
  Equipped with a front-panel digital indicator and tactile function keys, the unit allows for real-time threshold setting, sensitivity adjustment, and mode configuration.

• High-Speed Response
  Fast detection cycle suitable for dynamic industrial environments, such as packaging lines, labeling systems, and small-part detection.

• LED Status Indicators
  Clearly visible operational indicators provide instant visual feedback for power and detection states.

• Auto-Tuning Mode
  Simplifies setup by allowing automatic sensitivity calibration based on the target object, improving usability and reducing setup time.
