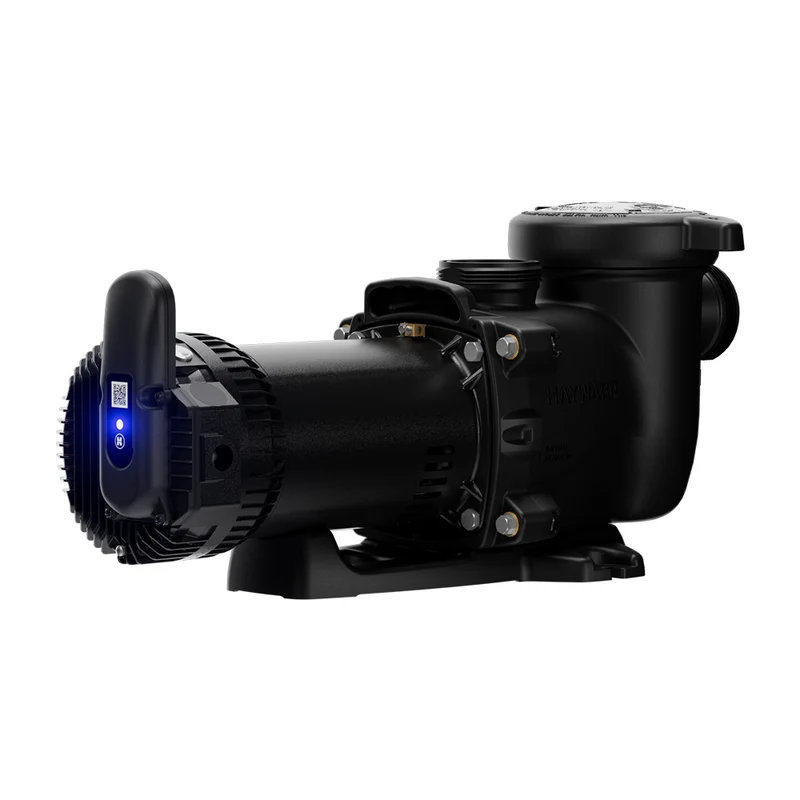

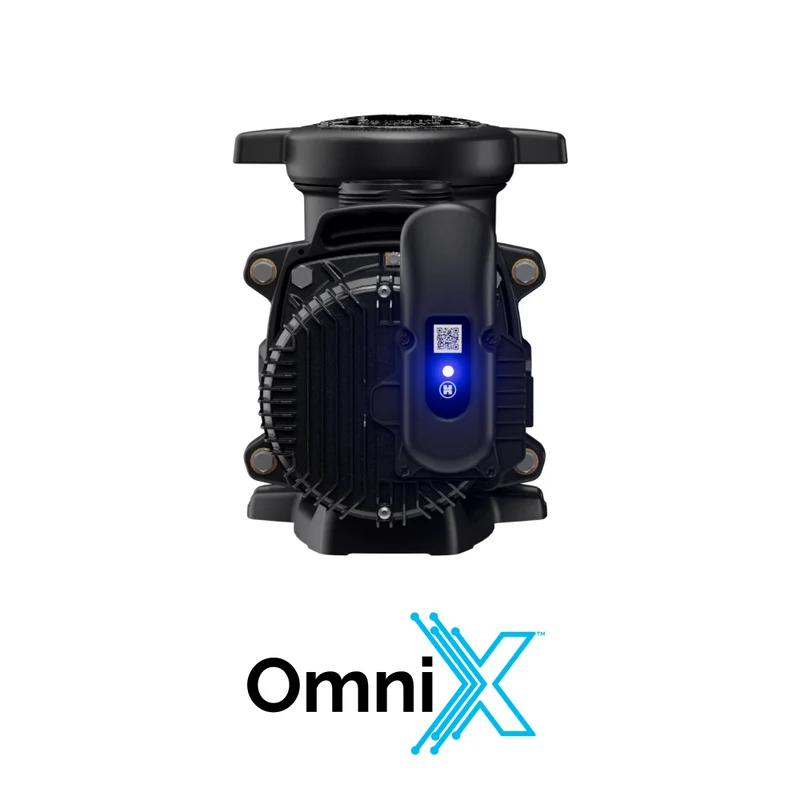

HAYWARD MaxFlo VS 420 Variable Speed Pump with Omnix

HAYWARD MaxFlo VS 420 Variable Speed Pump with Omnix

The Hayward MaxFlo VS 420 with OmniX is a powerful, energy-efficient variable-speed pool pump designed for modern pools that need both performance and smart control. It combines a high-performance motor with built-in automation, making it a solid upgrade from traditional single-speed pumps.

This pump is basically the “smartphone upgrade” of pool pumps — you’re not just turning it on/off, you’re controlling everything.

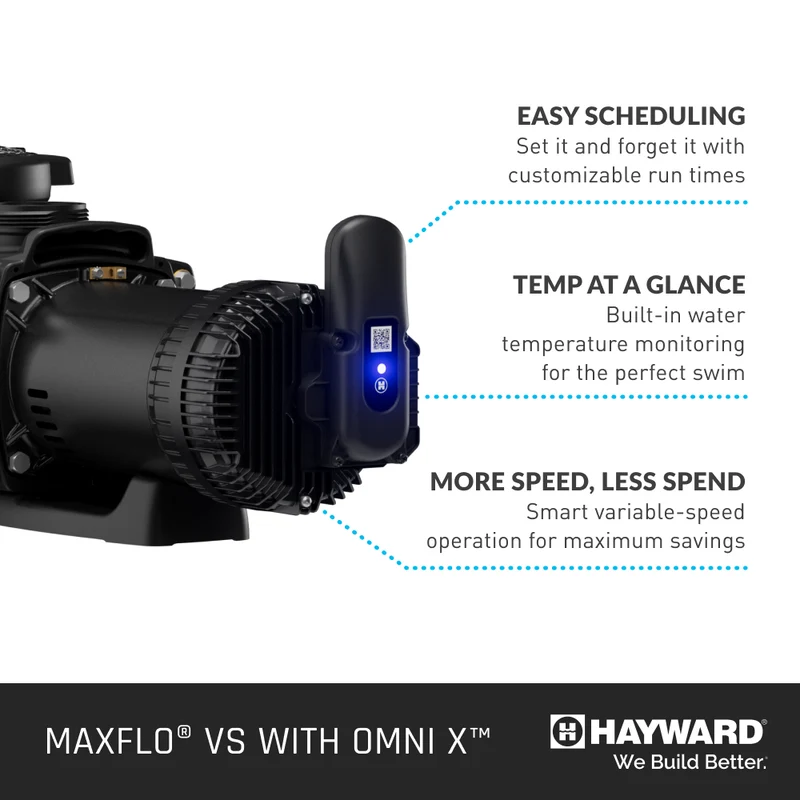

Smart OmniX Automation

Built-in OmniX system lets you control pump speed, schedules, and pool equipment through a mobile app.

Variable Speed Operation

Fully adjustable speeds (typically ~600–3000 RPM) for better efficiency and precise control.

Energy Savings

Can reduce energy usage by up to ~80% compared to single-speed pumps.

Bluetooth + Optional Remote Access

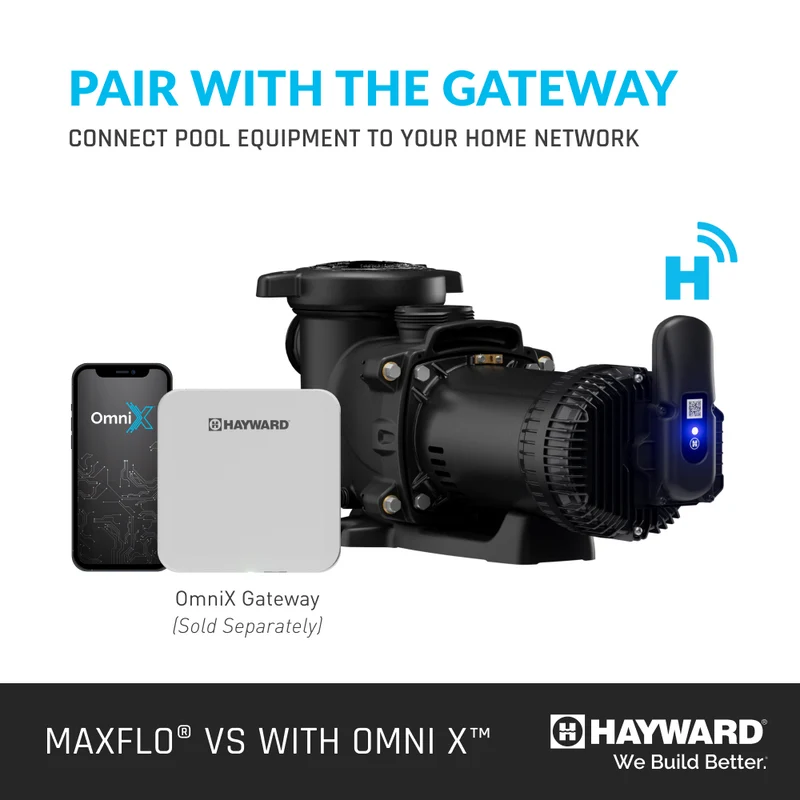

Connect via Bluetooth and add the OmniX Gateway for remote control from anywhere.

Specifications:

Channel	Open Line
DOE Compliant	Yes
Drive Enclosure Rating (NEMA4X/NEMA12)	N/A
GTIN	610377454070
Labor Warranty	1-year
Master Carton Qty	1
Motor Type	ODP
Number of Speeds	Variable Speed
Parts Warranty	3-year
Phase	N/A
Pool Type	In Ground
Quick Clean Button	No
Remote Mount Display	No
Rotatable Display	No
Shipping Dimensions	12.4 " x 9.9 " x 29 "
Shipping Weight	34.14 lb
Total HP	2.25 HP
Twist Lock	No
Voltage at 60 Hz	230/115
WEF	8.6 / 8.6

What's in the Box:

1 x MaxFlo VS 420 Pump Unit (2.25 HP motor)

1 x Built-in OmniX Control System

1 x Top-mounted Control Panel / Interface

1 x Union Connection Fittings (1.5” × 2”)

1 x Strainer Basket + Clear Lid

1 x Drain Plug(s) with O-ring

1 x Owner’s Manual & Installation Guide

Note: This model replaces the W3SP2315X20XE MaxFlo XE 2.25HP. The new model is W3VSP23420.
