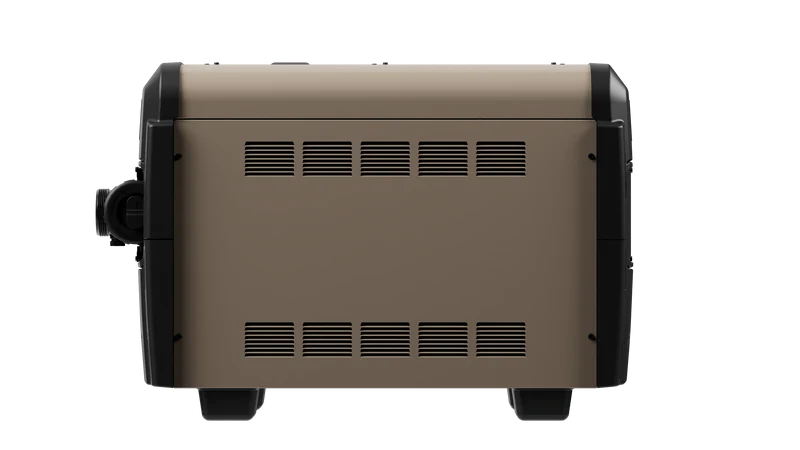

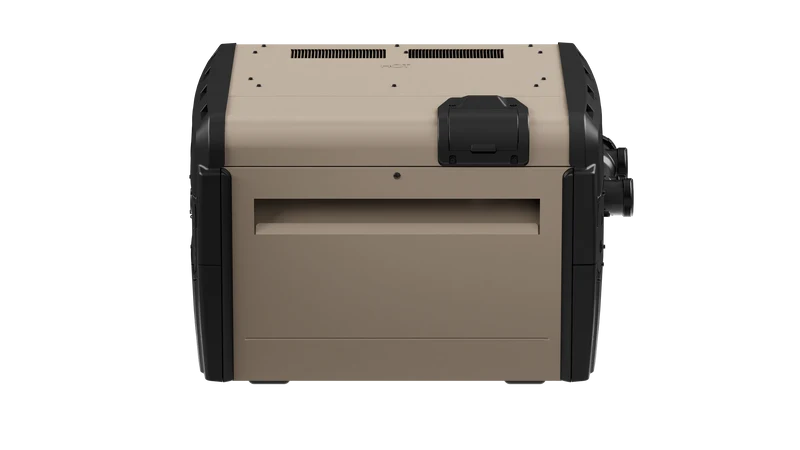

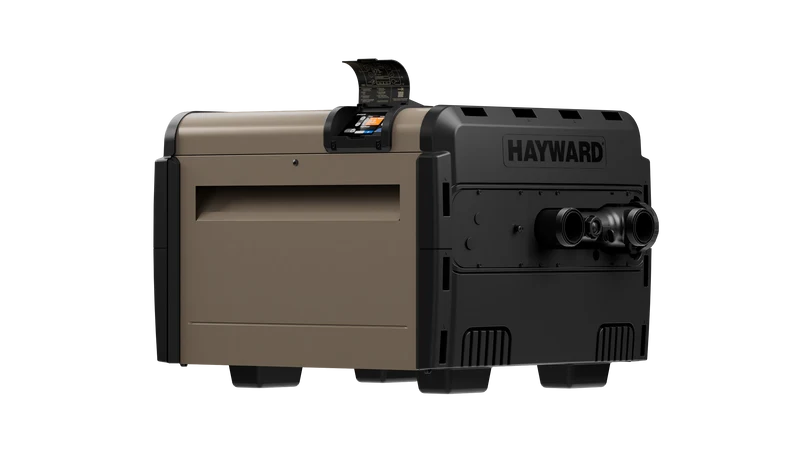

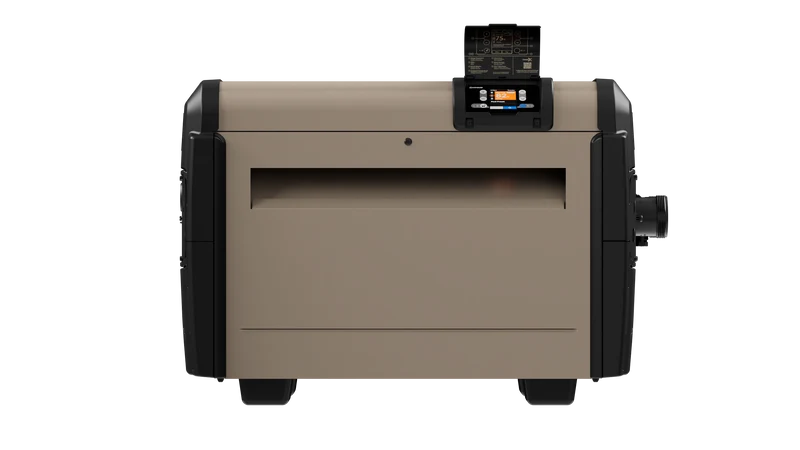

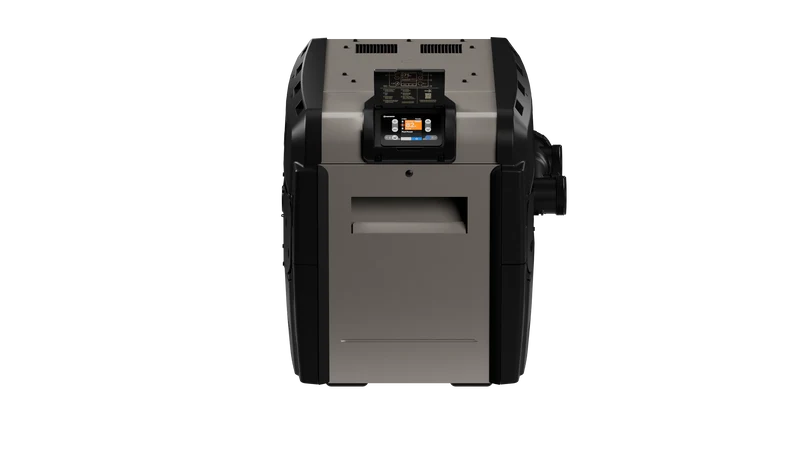

HAYWARD Universal H-Series Above-Ground Propane Gas Heater Low NOx

HAYWARD Universal H-Series Above-Ground Propane Gas Heater Low NOx

Hayward Universal H-Series heaters for above-ground pools and spas combines leading technology with ease of operation and superior performance.

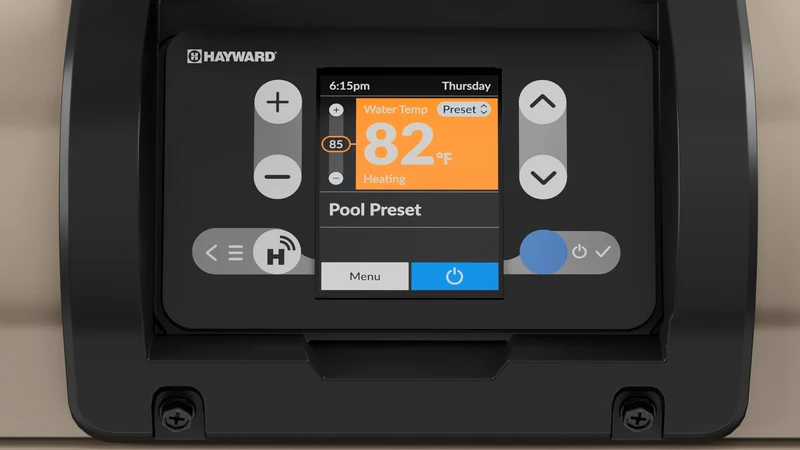

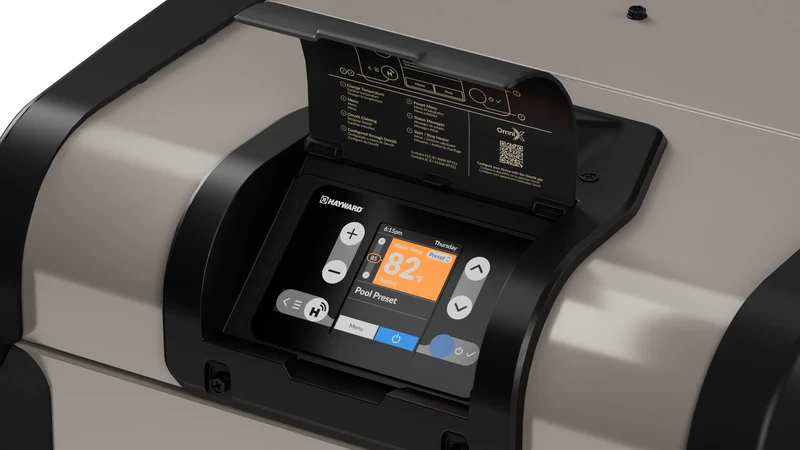

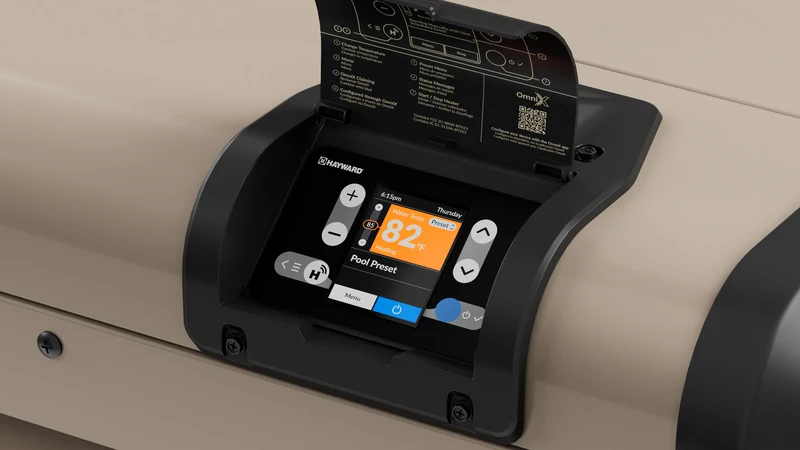

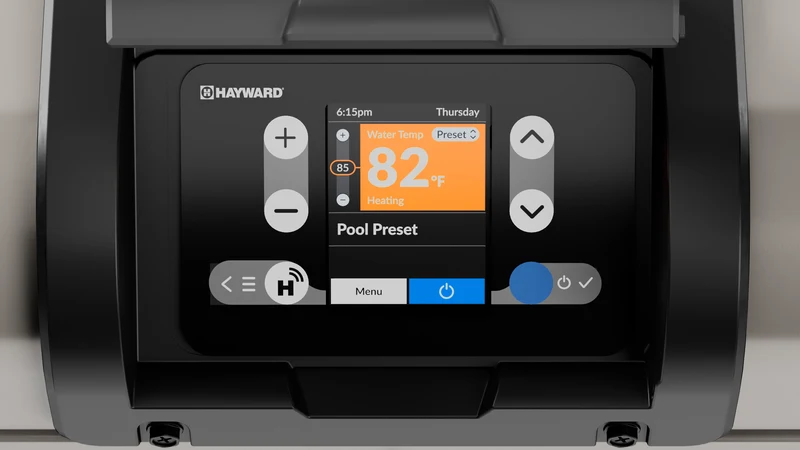

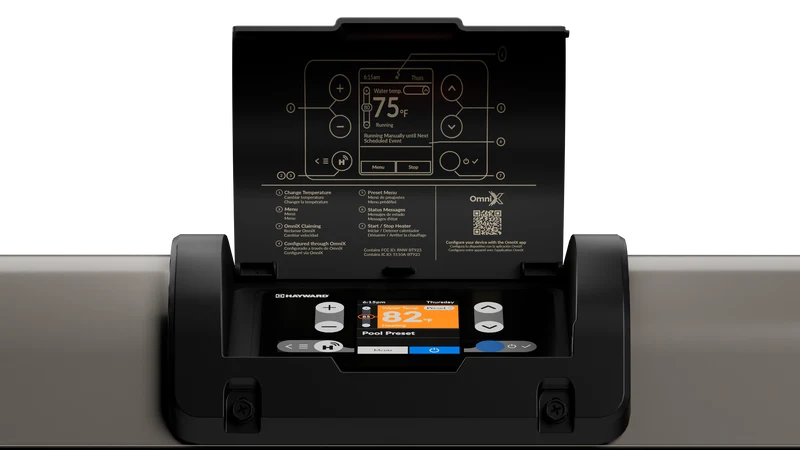

Universal H-Series pool and spa gas heaters are engineered for easy drop-in replacement, with direct compatibility to Hayward plumbing adapters. At the center is Hayward’s Universal Display, delivering a consistent, intuitive control experience across Omni®, OmniX®, and competitive automation systems. With OmniX embedded intelligence, the heater provides enhanced programmability, advanced diagnostics, and seamless remote connectivity.

Features and Benefits

• Cupro-nickel heat exchanger offers exceptional protection against corrosion and premature failure caused by unbalanced water chemistry
• Totally managed water flow boasts industry-leading hydraulic performance coupled with lightning-fast speed-to-heat capability
• Universal junction box allows either left and right electrical installation
• Front-panel-only access provides easy service and maintenance, avoiding the problems and costs associated with front-and-back-panel access heaters
• Low NOx emissions meet clean air quality standards
• Backwards Compatible OmniX Retrofit Kits available for existing Universal H-Series gas heaters 2016 or newer with current bezel cutout


Specifications:

Specifications	135 000 BTU	150 000 BTU	200 000 BTU	250 000 BTU
Active Defrost	No	No	No	No
Application		New Construction, Renovation, Aftermarket	New Construction, Renovation, Aftermarket	New Construction, Aftermarket
Boost Mode	No	No	No	No
Brand	Hayward	Hayward	Hayward	Hayward
Channel	Open Line	Open Line	Open Line	Open Line
Circuit Amps	5.5	5.5	5.5	5.5
Compressor Speed	N/A	N/A	N/A	N/A
Cooling Capability	No	No	No	No
Fuel Type	Propane (LP)	Propane (LP)	Propane (LP)	Propane (LP)
Heating Capacity (BTU/hr)	1,35,000	1,50,000	2,00,000	2,50,000
Hertz - Heaters	60 Hz	60 Hz	60 Hz	60 Hz
Kilowatts	40 kW	44 kW	59 kW	73 kW
Labor Warranty	None	None	None	None
Low Ambient Operation	Yes	Yes	Yes	Yes
Master Carton Qty	1	1	1	1
Maximum Breaker Size (Amps)	15	15	15	15
Pallet Qty	1	1	1	1
Parts Warranty	1-year	1-year	1-year	1-year
Phase Heaters	1	1	1	1
Pool Type	Above Ground	In Ground	In Ground	In Ground
Rear Clearance - Heaters	6"	6"	6"	6"
Refrigerant	Yes	No	No	No
Series Heaters	OmniX	OmniX	OmniX	OmniX
Shipping Dimensions	30.6 " x 32.8 " x 33.3 "	30.6 " x 32.8 " x 33.3 "	30.6 " x 32.8 " x 33.3 "	30.6 " x 32.8 " x 33.3 "
Shipping Weight	129 lb	129 lb	144 lb	170.5 lb
Side Clearance - Heaters	12"	12"	12"	12"
Silent Mode	No	No	No	No
Voltage - Heaters	120V	120/240V	120/240V	120/240V

What's in the Box:

1 x Universal H-Series Heater Unit (Natural Gas)

1 x Built-in Digital Control Panel (OmniX-enabled)

1 x OmniX Smart Control System (integrated)

1 x Cupro-Nickel Heat Exchanger (pre-installed)

1 x Gas Valve & Burner Assembly (factory installed)

1 x Water Connection Ports (2” / 2.5”)

1 x Electrical Connection Components / Terminal Block

1 x Drain Valve / Plug Assembly

1 x Front Access Panel (pre-installed)

1 x Owner’s Manual & Installation Guide
