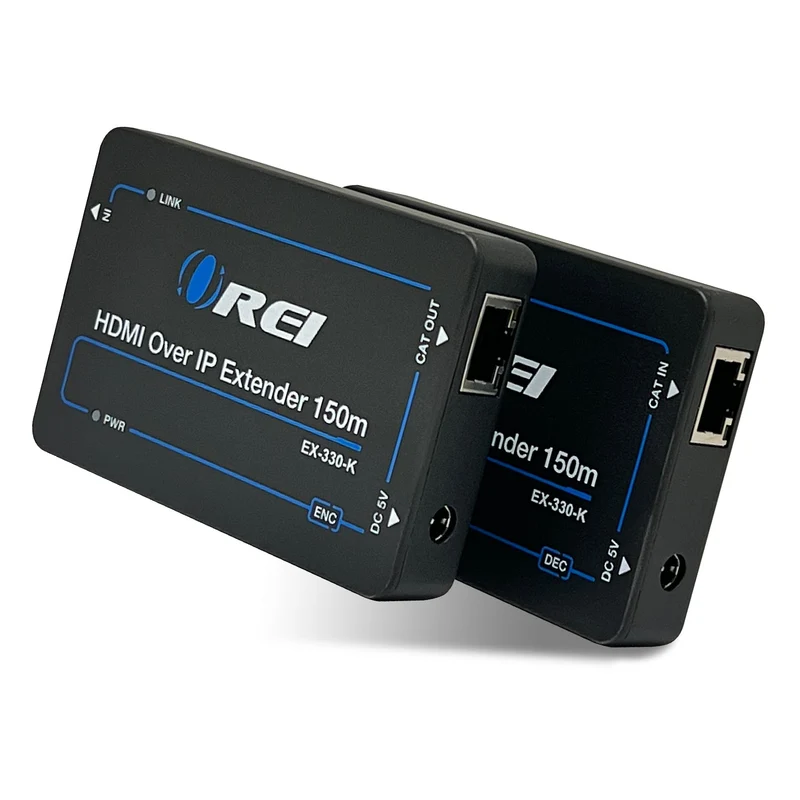

Orei EX-330-K HDMI Extender Signal Over Single CAT5e/CAT6 Ethernet Cable up to 330 feet (EX-330-K)

It can transmit HDMI 1080P signal to above 100M (330FT) by using UTP Cat5e6 Designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan.

With the advantage of TCP/IP standard Extend 120 meters more by adding one more Ethernet router.

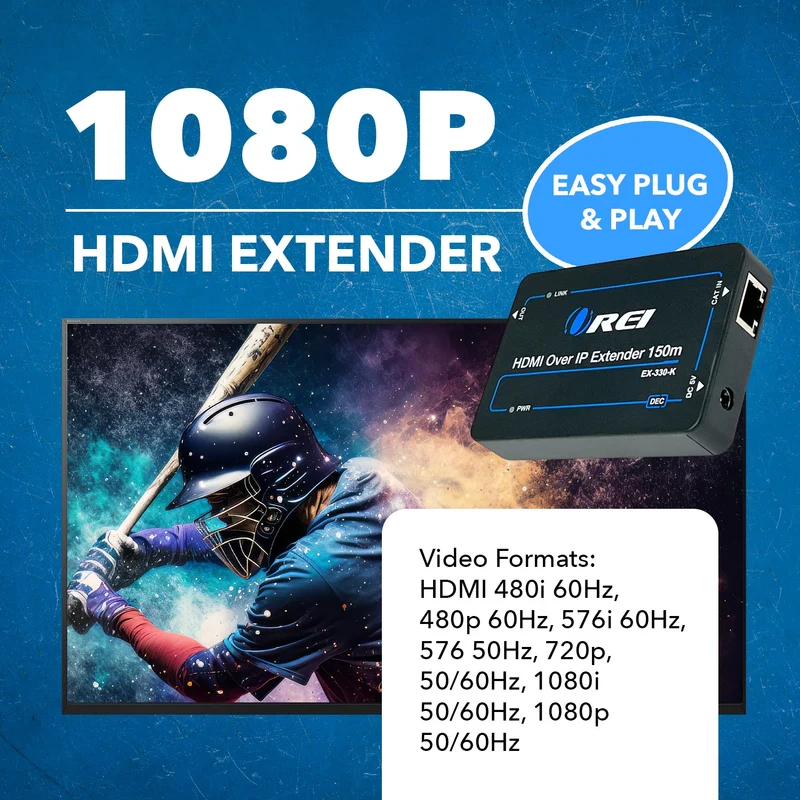

Apply M-Jpeg technique to process image compressing and with little image quality loss Support HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60HZ, 1080P@50/60Hz. [tab]

AUDIO AND VIDEO

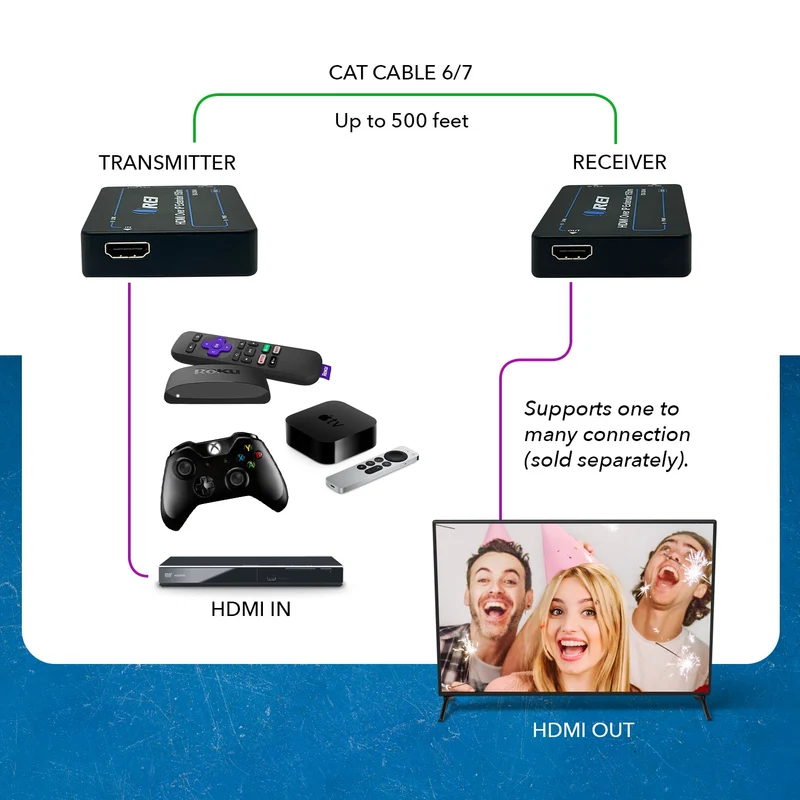

Transmitter:	INPUT PORT:         1x HDMI Female port
	OUTPUT PORTS:   1 x CAT6
Receiver:	INPUT PORT:         1 x HDMI Female port
	OUTPUT PORTS:   1 x CAT6

COMPLIANCES

HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.1
DVI Compliance:	DVI 1.1

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080p@60Hz:

330 Feet

VIDEO OUTPUT

Video Bandwidth:	2.25Gbps (single link)
Video Resolutions:	1080p@60Hz
Color Space:	YCbCr(4:2:2), YCbCr（4:4:4), RGB
Color Depth:	1080P/60Hz, YCbCr（4:2:2, 4:4:4, RGB 8\10\12bit)

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Yes
Downscaler Function:	No
Over Network/IP Function:	Yes
HDBaseT Function:	No
RS-232 Function:	No

Buttons

Reset:

This is factory reset button. When the Receiver system functions have been changed, pressing this button for 10seconds can realize factory reset

AUDIO OUTPUT

HDMI Audio Formats:

PCM [email protected], 48KHz sampling bit is 16bit/20bit/24bit

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

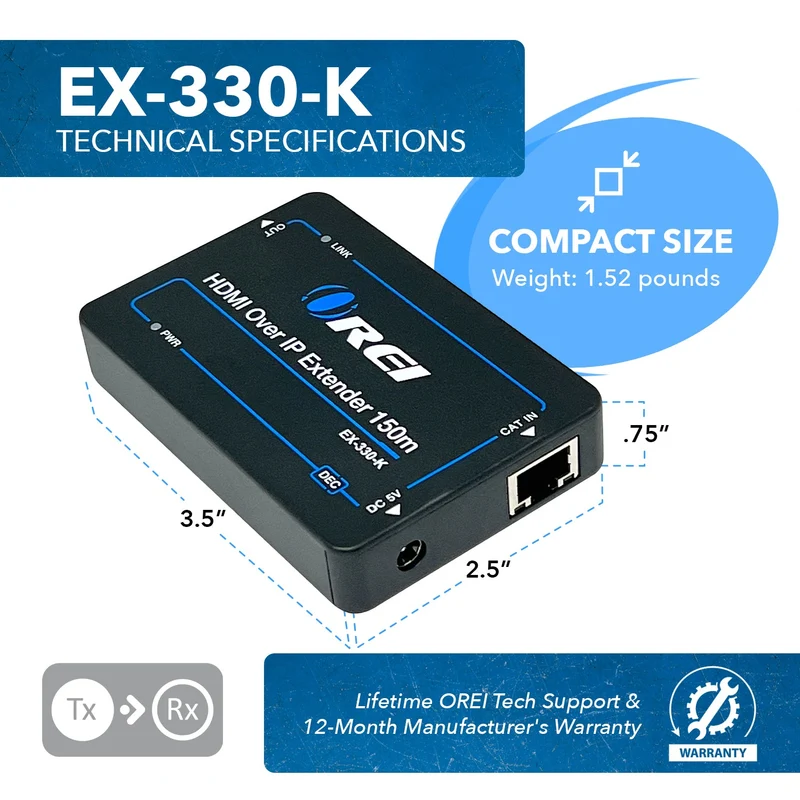

DIMENSIONS & WEIGHT

Height:	25mm
Width:	65mm
Depth:	100mm
Weight:	Transmitter:  125g
	Receiver:        125g

PROTECTION

Operation Temperature:	0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage temperature:	-20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	± 8kV (air-gap discharge), ± 4kV (contact discharge)
Electrostatic Protection of the whole Machine:	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter: 1.5W, 5V/0.3A
	Receiver:       1.25W, 5V/0.25A
Power Supply	DC 5V~12V

PHYSICAL PROPERTIES

Color:	Black
Housing:	PlasticEnclosure
Processing Technology:	Metal plate
Finishing:	Powder Spraying Technology Screen Printing

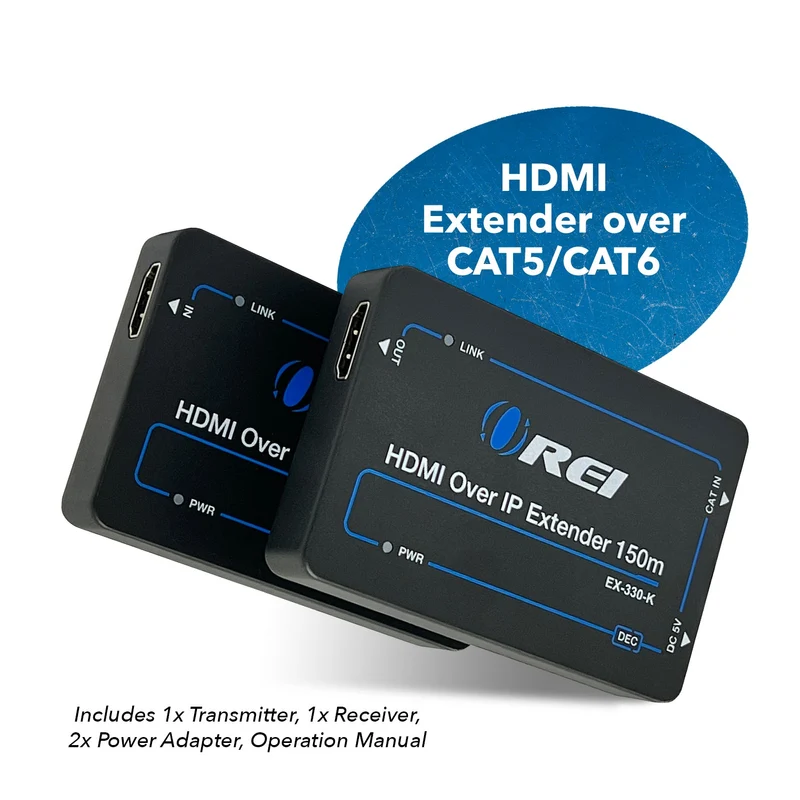

PACKAGE CONTENTS

1x HDMI Transmitter

1x HDMI Receiver

1x IR Transmitter

1x IR Receiver

2x 5V DC Power Supply adaptor

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Can I purchase the replacement parts such as power adapter, receiver/transmitter or IR Kit from OREI?

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

Can I extend multiple screen with this product?

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Can I extend beyond the mentioned distance?

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Can I input the output of this product to another extender similar to daisy chain method?

Yes, you can implement the daisy chain method.

What is the recommended type of CAT cable?

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

What types of HDMI & CAT cables I should use with this product?

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Can I purchase additional transmitter?

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Can I purchase additional receivers?

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

Can we upscale/downscale the video resolutions?

No, this product doesn't upscale/downscale the video resolutions.

Up to what length I can extend this product?

You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.

I am not getting signal with CAT5e cable but when I switch to CAT6, the issue gets resolved. How to make this unit work with CAT5e?

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

How to know if the extender is dead?

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

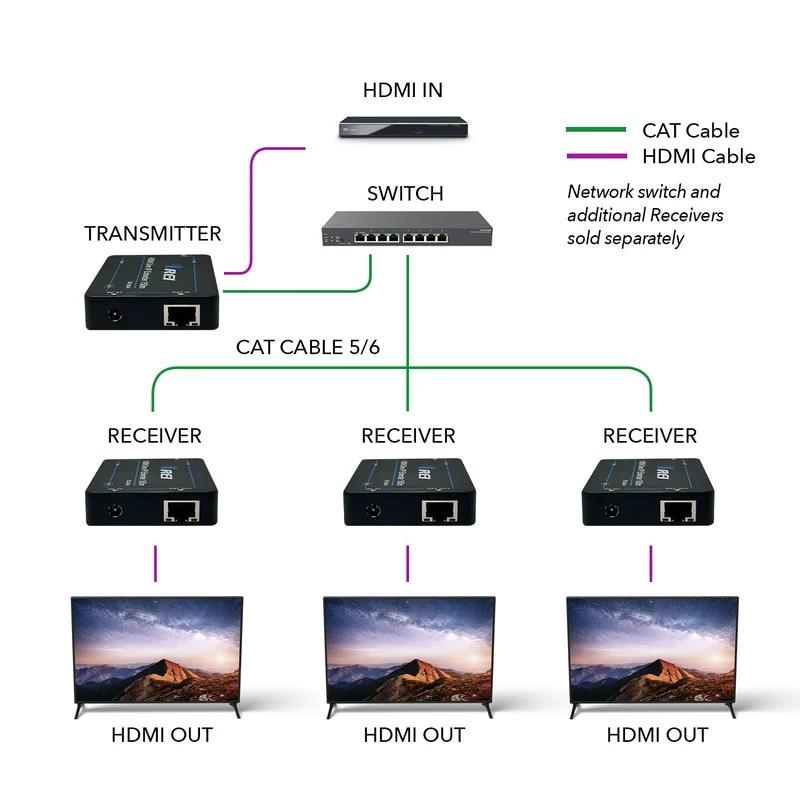

How many additional receivers I can connect with this extender via a network switch?

You can connect up to 253 additional receivers with this device using a network switch as a mediator.

Does this product supports Over IP function?

Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.

Does this product supports IR Frequency or FR Frequency?

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

I am unable to get the remote to work with IR, how to connect the IR Blaster/Emitter & IR Receiver?

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control

[/tab1] [shortdes]

• Supports 1080p@60Hz up to 330 feet
• Supports Over IP function
• Supports IR Remote Control

[/shortdes]
