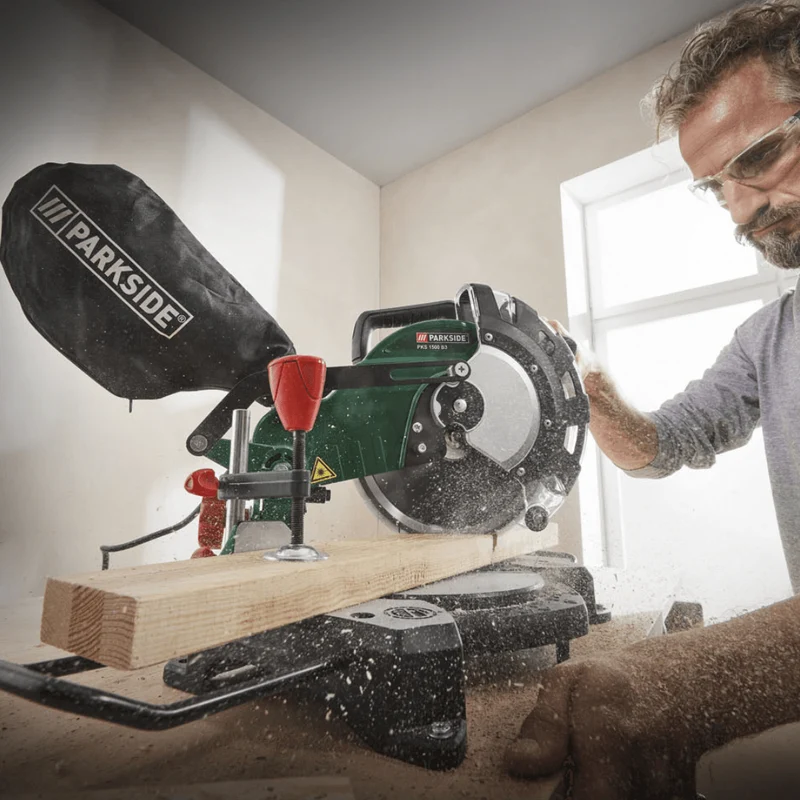

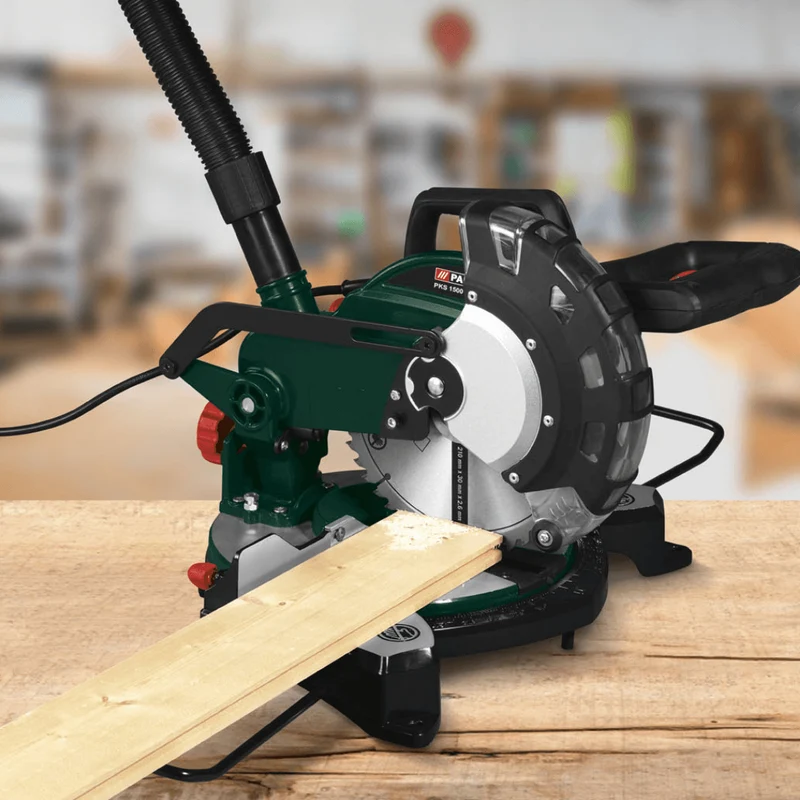

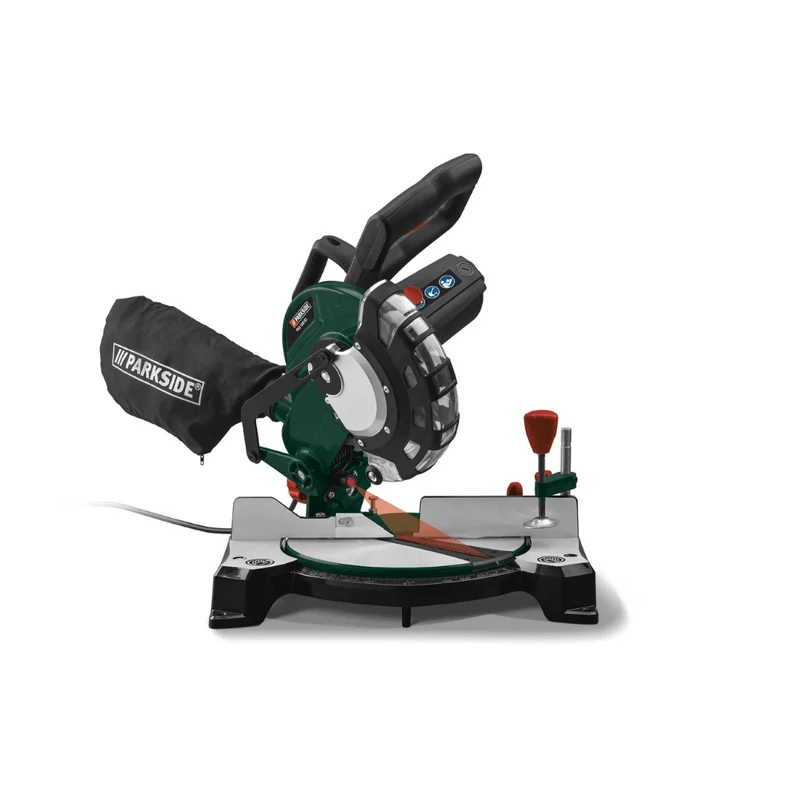

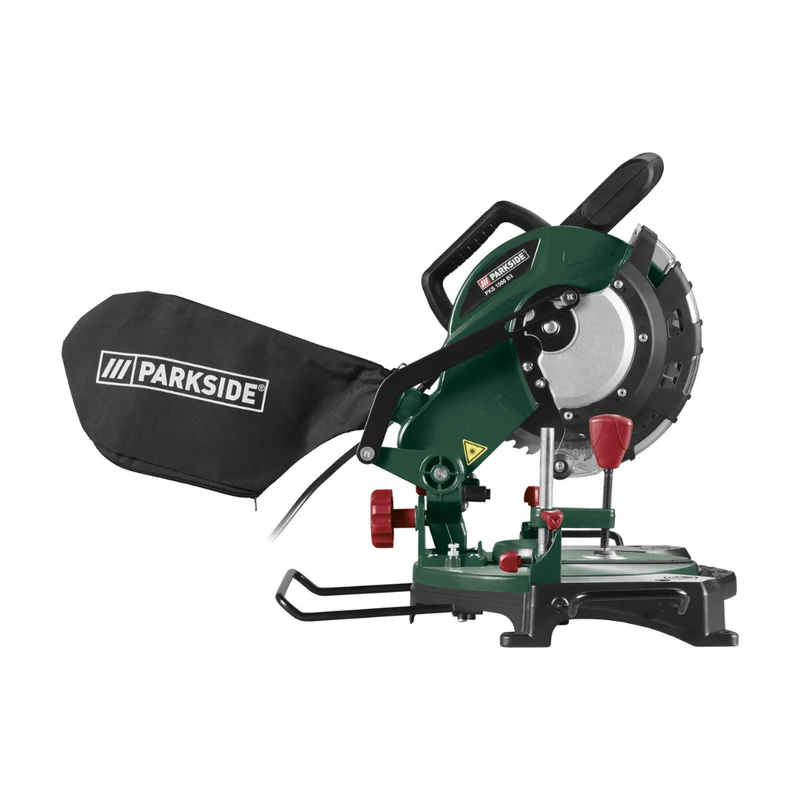

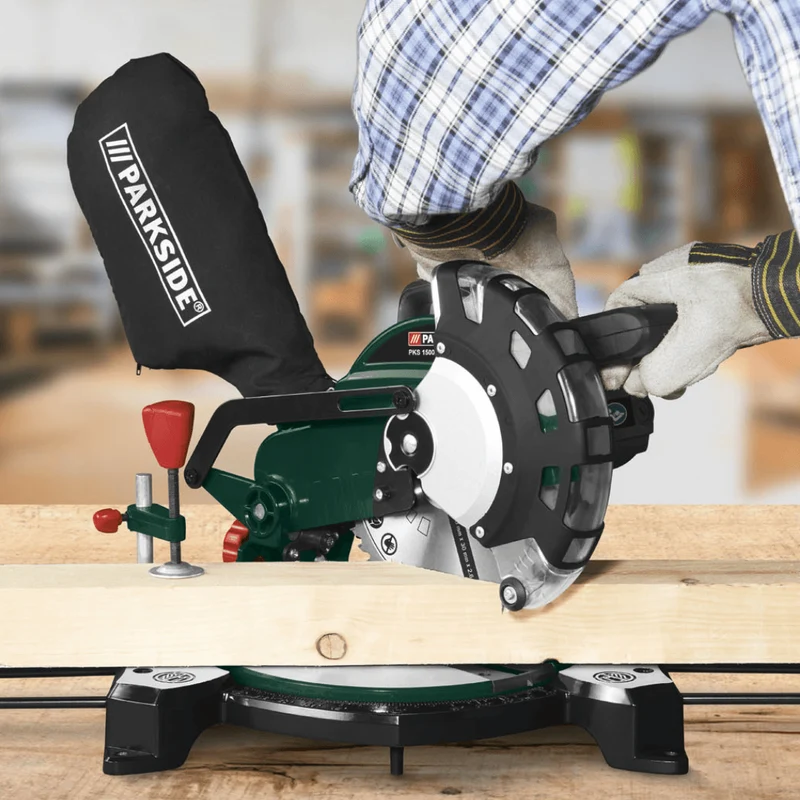

Parkside Miter Saw »PKS 1500 B3«, 1500 W

For precise cuts in wood and plastic

Integrated laser for precise sawing

Continuously tiltable head

Tab infinitely adjustable or with stops

Clamping device and side retaining brackets for fixing the workpieces to be sawn

Compact design with handle

Easy to attach dust bag

Can also be connected to an external suction system

Can be attached to a workbench (mounting accessories not supplied)

Power: 1,500 W

No-load rotation speed: 5,000 rpm

Tilt angle: 0° to 45°

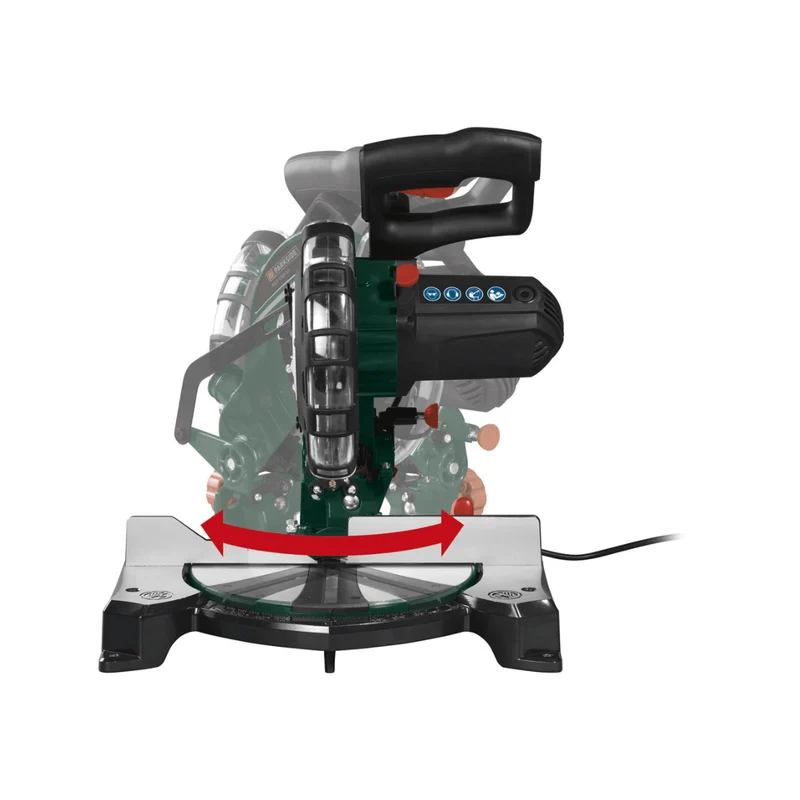

Miter cut: from -45° to +45°

Cutting length: max. 120mm

Cutting depth: max. 60mm (35mm at 45°)

Saw blade: Ø 210 mm / 48 teeth (pre-assembled)

Aiming the cutting line: laser

1 dust bag, 1 blade changing tool, 1 stop adjustment tool, 2 spare carbon brushes, 2

alkaline batteries (for the laser) Instructions included
