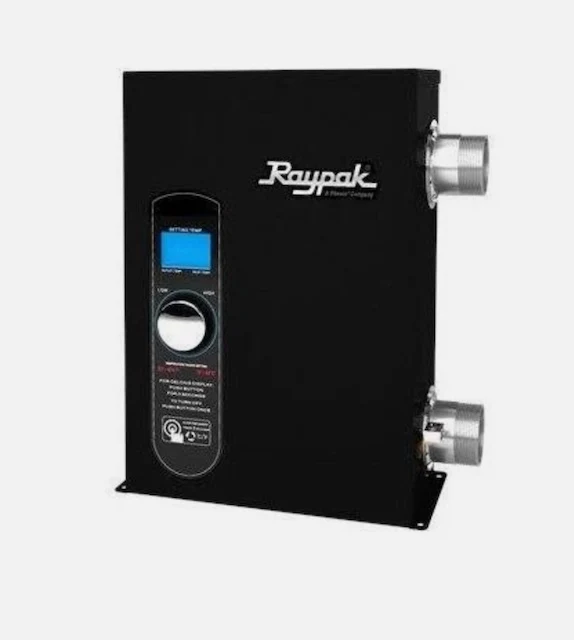

Raypak E3T Electric Pool & Spa Heater, 5.5kW, 240V

Raypak E3T Electric Pool & Spa Heater, 5.5kW, 240V

Upgrade your pool or spa heating system with the Raypak E3T Electric Pool & Spa Heater (5.5 kW, 240 V, single-phase). Featuring rugged titanium heating elements encased in 316L marine-grade stainless steel, this unit delivers corrosion-resistant, efficient performance—even in saltwater environments. Its solid-state controls and flow-sensor design offer whisper-quiet, modulating heat output, while a bright digital display provides real-time inlet/outlet temperatures, flow rate, and diagnostic alerts.

Specifications:

🔧 Technical Specifications

Specification	Details
Model Number	ELS‑R‑0005‑1‑TiB (5.5 kW)
Product #:	RAY‑15‑0012 (cross-reference 017121, 100‑10000662)
Power Output	5.5 kW · 18,767 BTU/hr ebay.com+6sunplay.com+6royalswimmingpools.com+6
Voltage	240 VAC, single-phase, 60 Hz
Amp Draw / Breaker	~30 A service
Element Material	Titanium
Housing Material	316L marine-grade stainless steel
Flow Activation Range	Min 15 GPM (57 LPM) – Max 60 GPM (227 LPM)
Plumbing Connections	1½″ NPT union fittings (included)
Thermal Efficiency	100 %
Safety Features	Freeze/low-temp protection, flow monitoring, overheat, diagnostic codes (E1–E10)
Control Interface	Digital display with inlet/outlet temps, flow, fault codes
Dimensions (H × W × D)	12.125″ × 9″ × 4.75″ (30.8 × 22.8 × 12 cm)
Weight	15 lb (≈ 6.8 kg)
Warranty	1-year limited (extended options available via Raypak retail partners)

What's in the Box:

• E3T heater unit (ELS‑R‑0005‑1‑TiB, 5.5 kW)

• User manual—comprehensive installation and operation guide

• Warranty documentation, including manufacturer’s limited warranty
