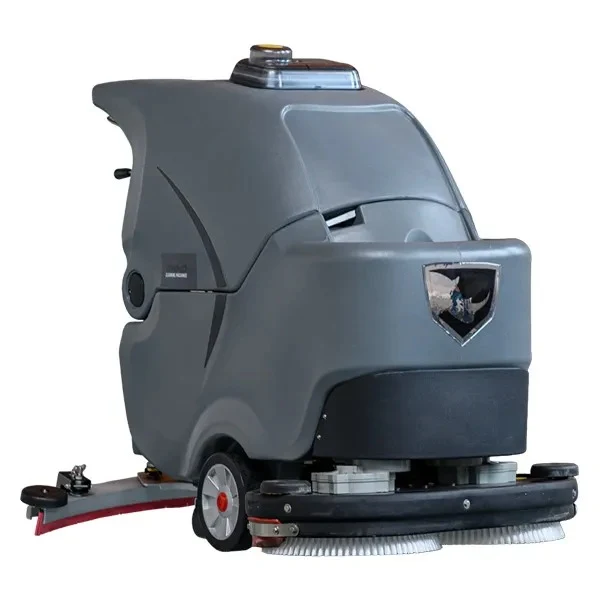

Rhino 28TD Traction Drive Disk Floor Scrubber RS28TD

The Rhino 28TD Traction Drive Disk Floor Scrubber is a high-productivity, self-propelled floor cleaning machine designed for medium-sized commercial facilities. Featuring a 28-inch (71.1 cm) dual-disk scrub path, traction drive system, and large-capacity tanks, it delivers efficient cleaning performance while reducing operator fatigue and increasing productivity.

The Rhino 28TD package includes the floor scrubber equipped with a self-propelled traction drive system, dual brush motors, recovery system, and battery-powered operation. It is ideal for schools, hospitals, retail stores, warehouses, and commercial facilities requiring efficient daily floor maintenance.

Key Benefits

• Self-propelled drive system reduces operator effort
• Wide dual-disk scrub path increases productivity
• Large tank capacity minimizes downtime
• Long runtime supports extended cleaning sessions
• High brush pressure improves cleaning performance
• Suitable for medium-sized commercial facilities

Features

• 28-inch (71.1 cm) dual-disk scrub path
• Self-propelled sealed transaxle drive system
• 19-gallon (71.9 L) solution tank
• 20-gallon (75.7 L) recovery tank
• Dual 450 W gear-reduction brush motors
• 380 W vacuum motor

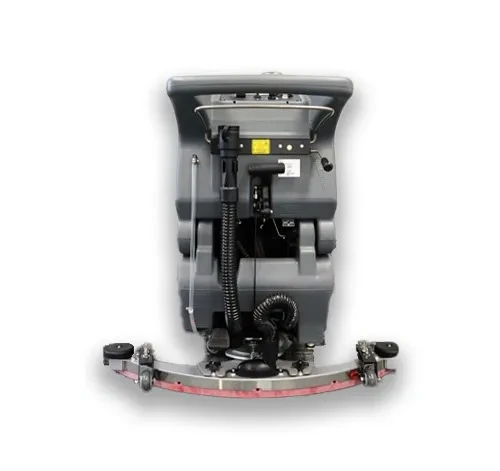

• 38-inch (96.5 cm) squeegee assembly
• Commercial-grade construction

Specifications

Dimensions & Capacity

• Length: 50.4 in (128 cm)
• Width: 31.49 in (80 cm)
• Height/Thickness: 40.15 in (102 cm)
• Weight: 210 lbs (95.3 kg) without batteries
• Capacity: 19 gal (71.9 L) solution tank
• Volume: 20 gal (75.7 L) recovery tank

Construction

• Material: Commercial-grade construction
• Air Chambers: Not applicable
• Inflation Pressure: Not applicable
• Floor Type: Tile, concrete, vinyl, terrazzo, sealed floors, and other hard surfaces
• Certifications: Not specified

Performance & Setup

• Inflation Time: Not applicable
• Speed: Self-propelled traction drive
• Motor Capacity:
  • Brush Motors: 450 W x 2
  • Vacuum Motor: 380 W
• Whitewater Rating: Not applicable
• Tracking System: Sealed transaxle traction drive
• Additional Performance Features:
  • 65 lb (29.5 kg) brush pressure
  • 24-volt operating system
  • Dual 12V 120Ah lead-acid batteries
  • Up to 3 hours runtime
  • Productivity up to 33,000 sq ft/hr (3,066 m²/hr) theoretical
  • Typical productivity of 19,000 sq ft/hr (1,765 m²/hr)

Included Components

• Rhino 28TD Floor Scrubber
• Self-propelled traction drive system
• Dual 12V 120Ah lead-acid batteries
• Squeegee assembly
• Operator documentation

Suggested Uses

The Rhino 28TD Traction Drive Disk Floor Scrubber is ideal for schools, hospitals, retail centers, supermarkets, warehouses, manufacturing facilities, and commercial buildings requiring efficient cleaning of medium-sized hard floor areas with enhanced operator comfort and productivity.

Product Downloads

• User's Manual

• Parts List
