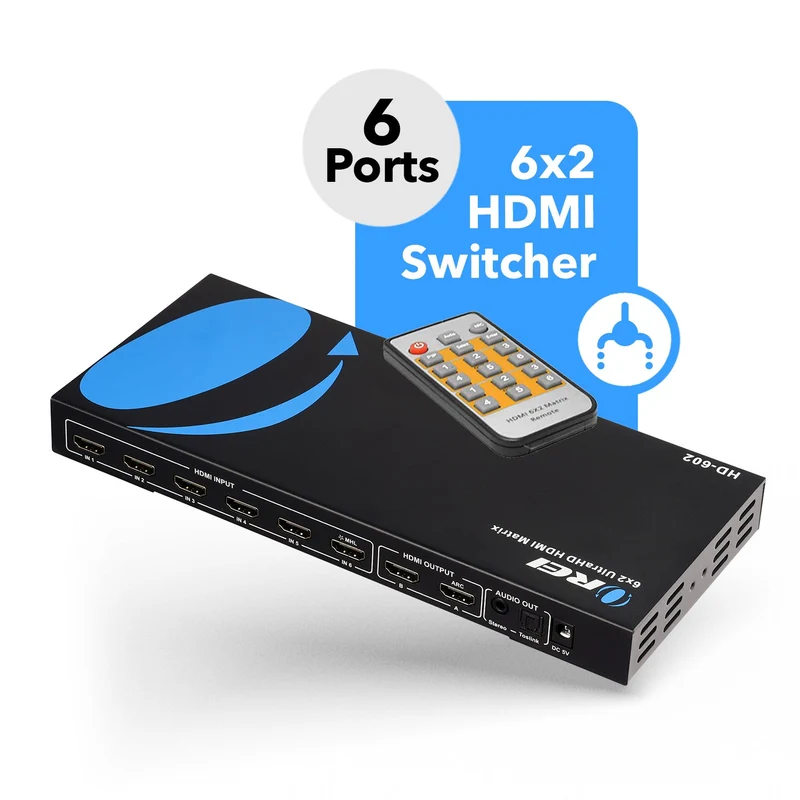

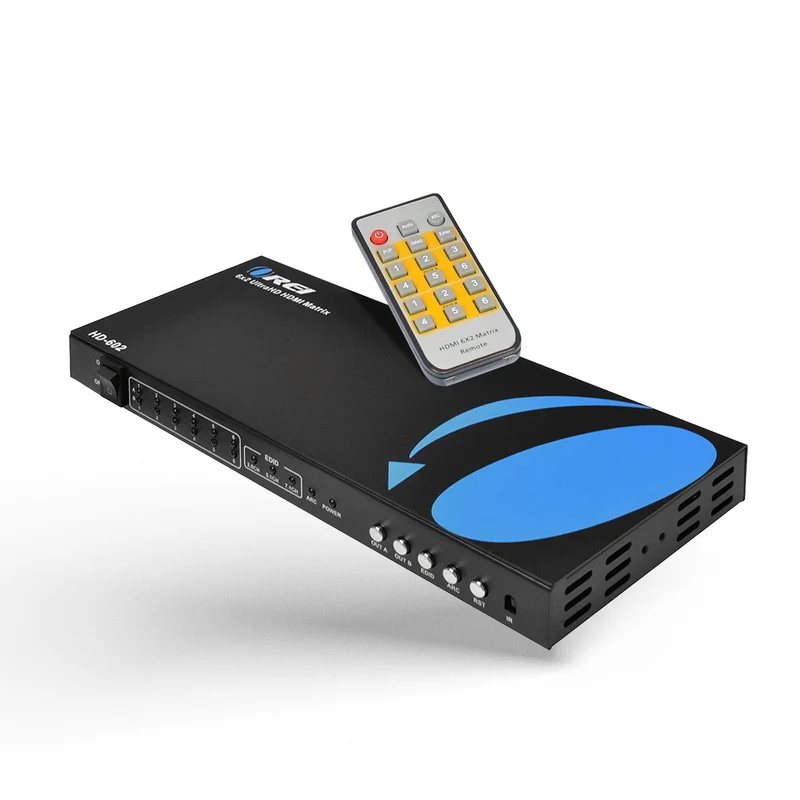

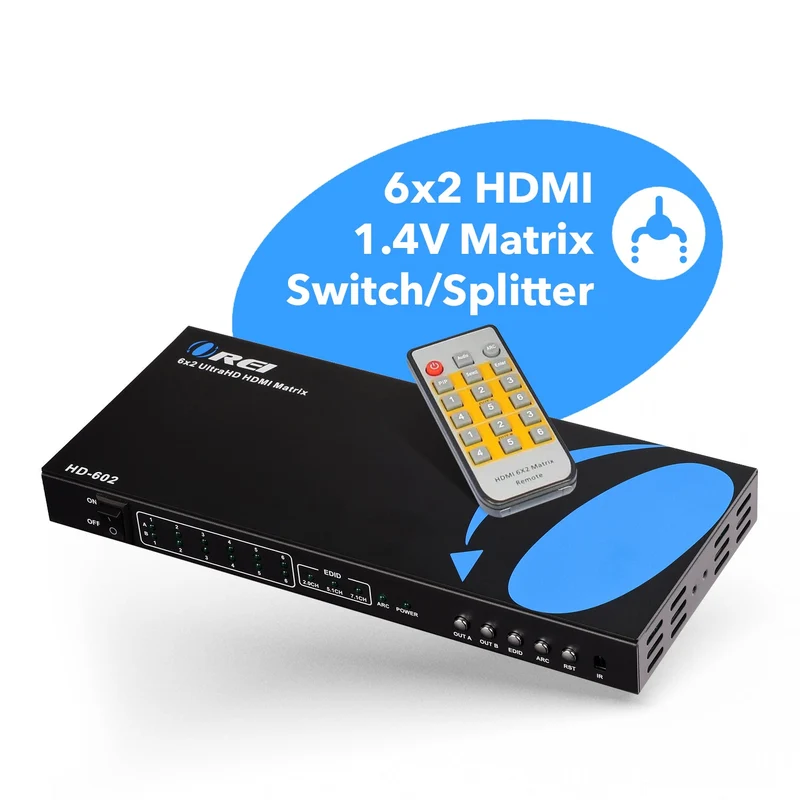

Ultra HD 6x2 HDMI Matrix Switch with ARC Support (HD-602)

OREI HD-602: 6-In-2-Out HDMI Matrix Switch with ARC

Key Features:

• HDMI 2.0, HDCP 2.2 compliant
• Video resolutions up to 4K@60Hz
• 2.9Gbps video bandwidth
• Audio extraction through Optical and Analog
• Output A support ARC function
• Control through the included remote or the buttons on the device
• Strong build
• Plug-and-play setup

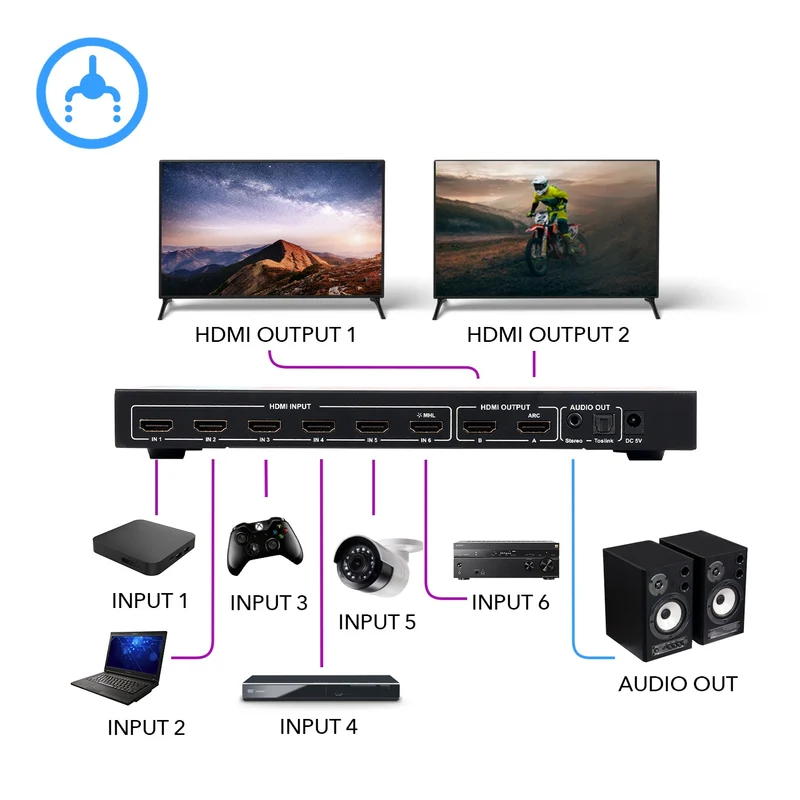

The HD-602 Matrix switch lets you connect up to 6 media devices and distribute them to 2 displays. It supports video resolutions up to 4K@60Hz 4:2:0 and 4K@30Hz 4:4:4, compliant with HDMI 2.0 and HDCP 2.2 standards, featuring a 2.9Gbps video bandwidth. It supports audio extraction via Optical and Analog, with Output A supporting ARC functionality. Audio format changes are possible using the EDID button. Control is simple with the included remote or the buttons on the device. The HD-602 is ideal for any home theater or commercial setup.

[shortdes]

• 2.9Gbps video bandwidth
• Video resolutions up to 4K@60Hz
• Output A support ARC

[/shortdes]

[tab]

CONNECTIVITY

INPUT:	6 × HDMI [Type A, 19-pin female]
OUTPUT:	2 × HDMI [Type A, 19-pin female]
	1 x OPTICAL [S/PDIF, female]
	1 × L/R [3.5mm Stereo Mini-jack]

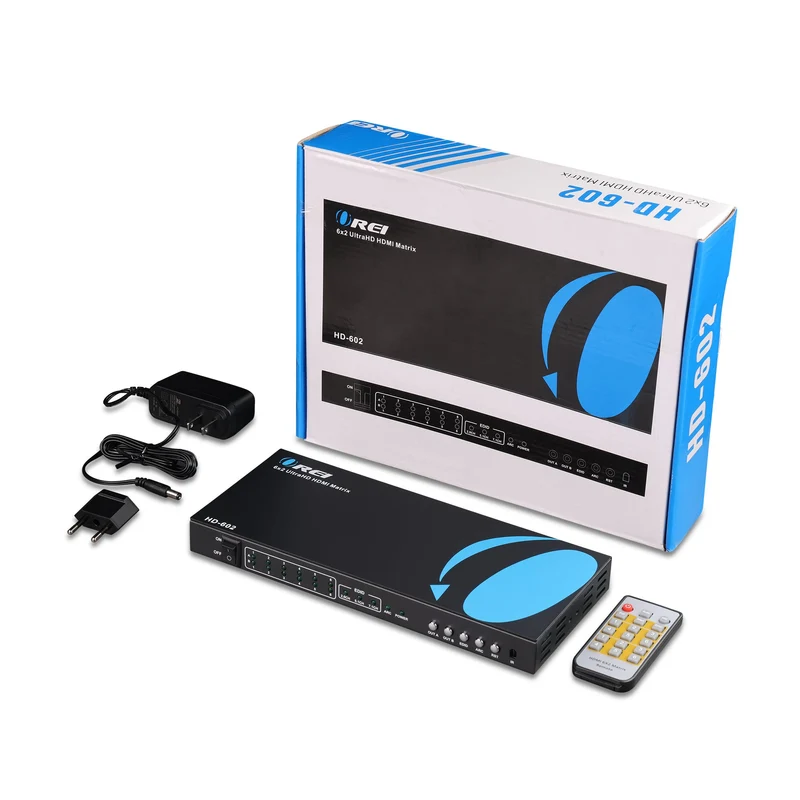

PACKAGE CONTENTS

1x HD-602

1x Remote

2x Mounting ears

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.0 / 2.1

We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

4K@60Hz:

30 Feet

VIDEO OUTPUT

Video Bandwidth:	2.97 Gbps
Video Resolutions:	Up to 4K@30Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	Yes
USB KVM:	No
PoC/PoE:	No
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

AUDIO SUPPORT

HDMI Audio Formats:	PCM 2.0, 5.1, 7.1, Dolby 5.1, DTS5.1, Dolby TrueHD, DTS-HD
Optical Audio Formats:	PCM 2.0, 5.1, Dolby 5.1, DTS5.1
Analog Audio Formats:	PCM 2.0

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	10W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/2A

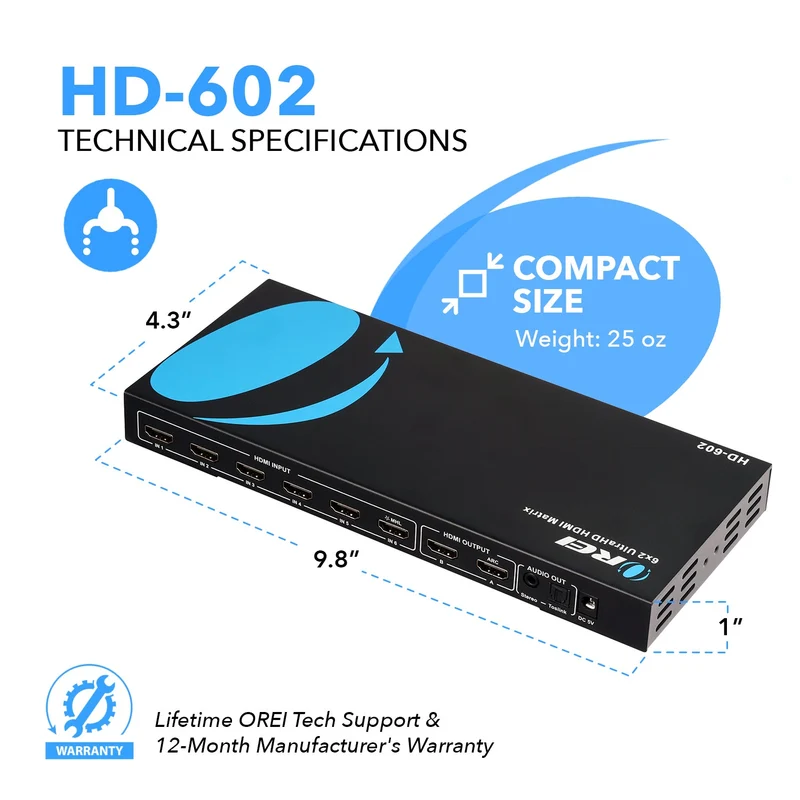

DIMENSIONS & WEIGHT

Length:	250mm / 9.84in
Width:	110mm / 4.33in
Height:	26mm / 1.02in
Weight:	720g / 1.58lbs

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]
