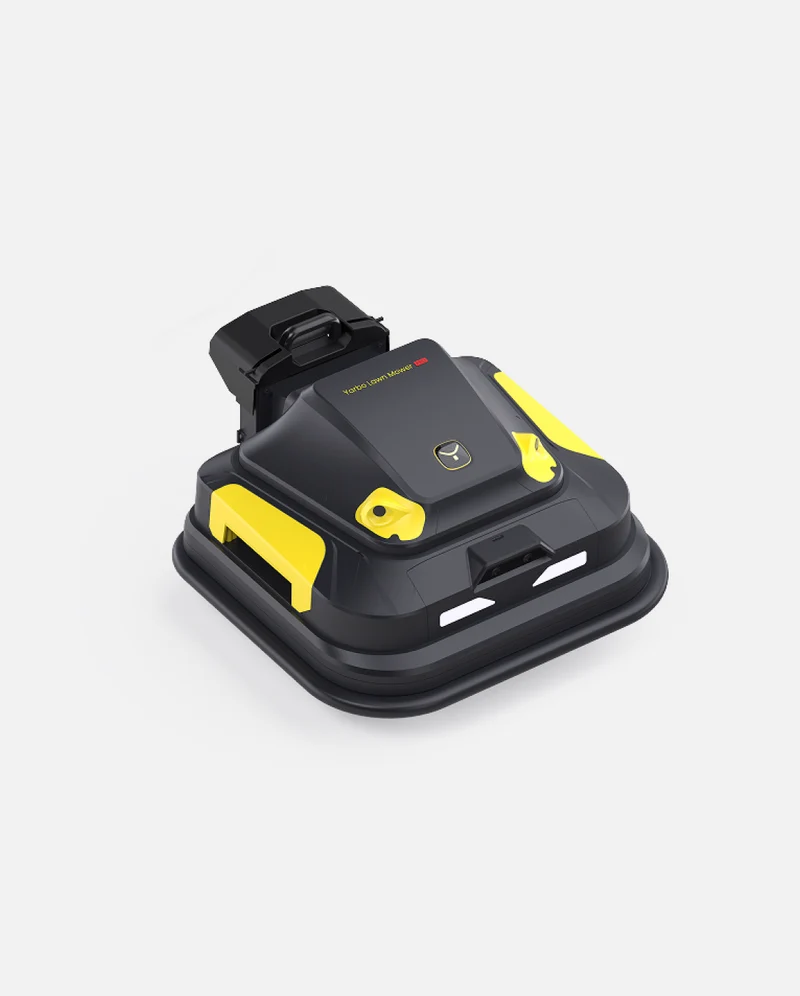

Yarbo Lawn Mower Pro Module

Yarbo Lawn Mower Pro Module

The Yarbo Lawn Mower Pro Module is a high-performance robotic mowing attachment designed for the Yarbo modular yard automation system. Built for residential and commercial lawn care, it features dual 300W mowing motors delivering up to 2500W peak power for handling thick, wet, and dense grass with ease.

Designed for large and complex properties, the module can mow up to 6.2 acres and tackle steep slopes up to 70% (35°). It supports interchangeable blade systems, including standard dual cutting discs and optional straight blades for finer cuts and reduced maintenance.

The module uses advanced RTK positioning, vision sensors, IMU, ODOM, ultrasonic radar, and obstacle detection technologies for precise autonomous mowing and navigation. With smart app control, wireless auto-recharging, rain detection, and multi-zone management, the Lawn Mower Pro Module provides a fully automated lawn care solution for modern outdoor maintenance.

Key Features

• Dual 300W mowing motors
• Up to 2500W peak power
• Handles thick, wet, and overgrown grass

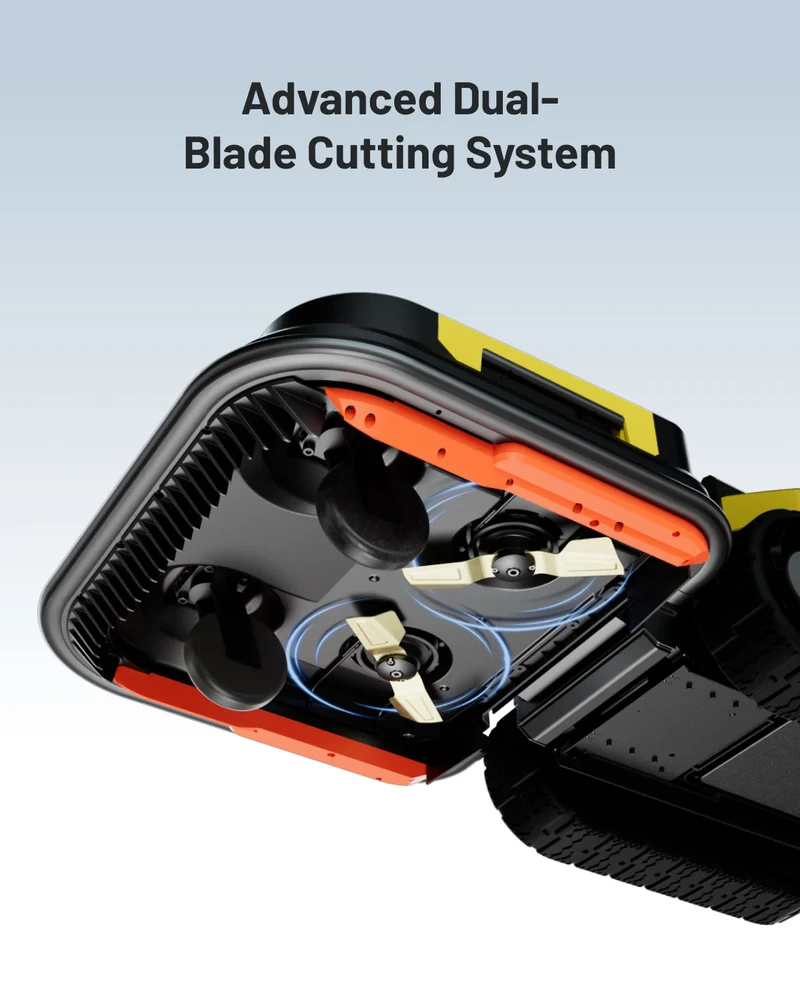

• Supports straight blades and dual cutting discs
• Covers up to 6.2 acres
• 20-inch cutting width
• Adjustable cutting height from 0.8–4.0 inches
• Handles slopes up to 70% (35°)
• RTK + Vision + IMU + ODOM navigation system
• Smart obstacle avoidance with cameras and ultrasonic radar
• Wireless automatic recharging
• App-based remote control and scheduling
• Multi-zone lawn management
• Rain detection system
• Quiet operation at 60dB
• IPX6 waterproof rating

Specifications

Specification	Details
Product	Yarbo Lawn Mower Pro Module
Mowing Motors	300W × 2
Peak Power	2500W
Cutting Width	20 in (50 cm)
Adjustable Cutting Height	0.8 – 4.0 in (20–102 mm)
Blade System	Straight Blade / Dual Decks with 5 Blades Each
Max Coverage	6.2 acres (25000㎡)
Max Climbing Ability	70% (35°)
Max Edge Slope	70% (35°)
Mowing Time per Charge	120 min
Charging Time	90 min
Noise Level	60 dB
Navigation System	RTK & Vision & IMU & ODOM
Obstacle Avoidance	Binocular Camera & Ultrasonic Radar & Bumper
Connectivity	4G, Wi-Fi, Bluetooth, Wi-Fi HaLow
Waterproof Rating	IPX6
Driving System	Tracked Drive
Battery Capacity	1.38 kWh
Auto Recharge	Yes
Teleoperation	Yes
Rain Detection	Yes
Weight	70 lbs (32 kg)
Unit Dimensions	27 × 29 × 15 in (69 × 74 × 40 cm)

What’s in the Box

1 x Yarbo Lawn Mower Pro Module
1 x Blade Set
1 x User Manual
